Vehicle - Service Manual Updates
Bulletin No.: 014/94Issued: 5/19/94
Revised
Category
W
Applicable Model/s:
1994 B-Series.
Subject:
WORKSHOP MANUAL CORRECTIONS
DESCRIPTION
Included are replacement pages for 1994 B-Series Workshop Manual which require correction for the following reasons:

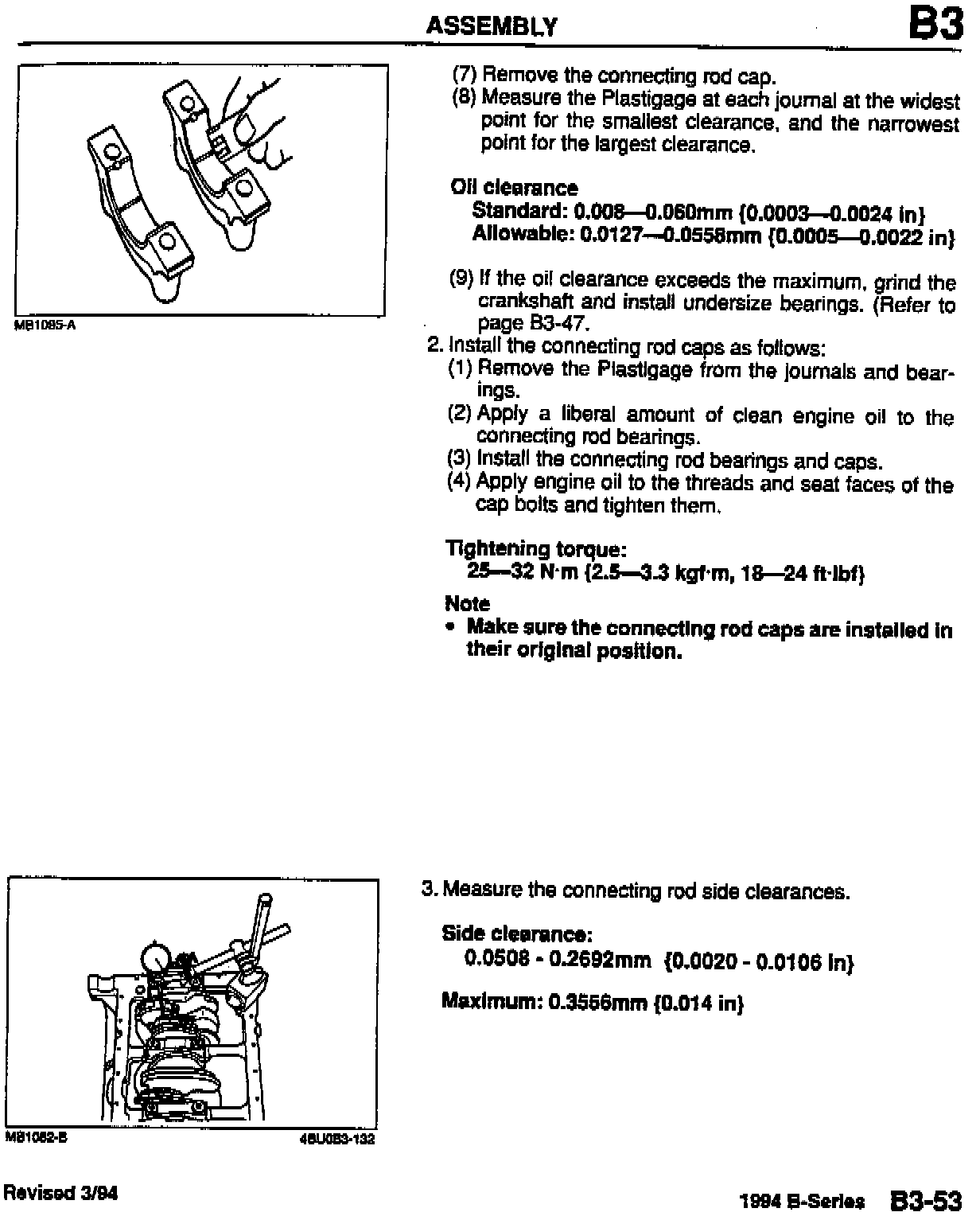

Page B3-53 - Correction to side clearance dimensions

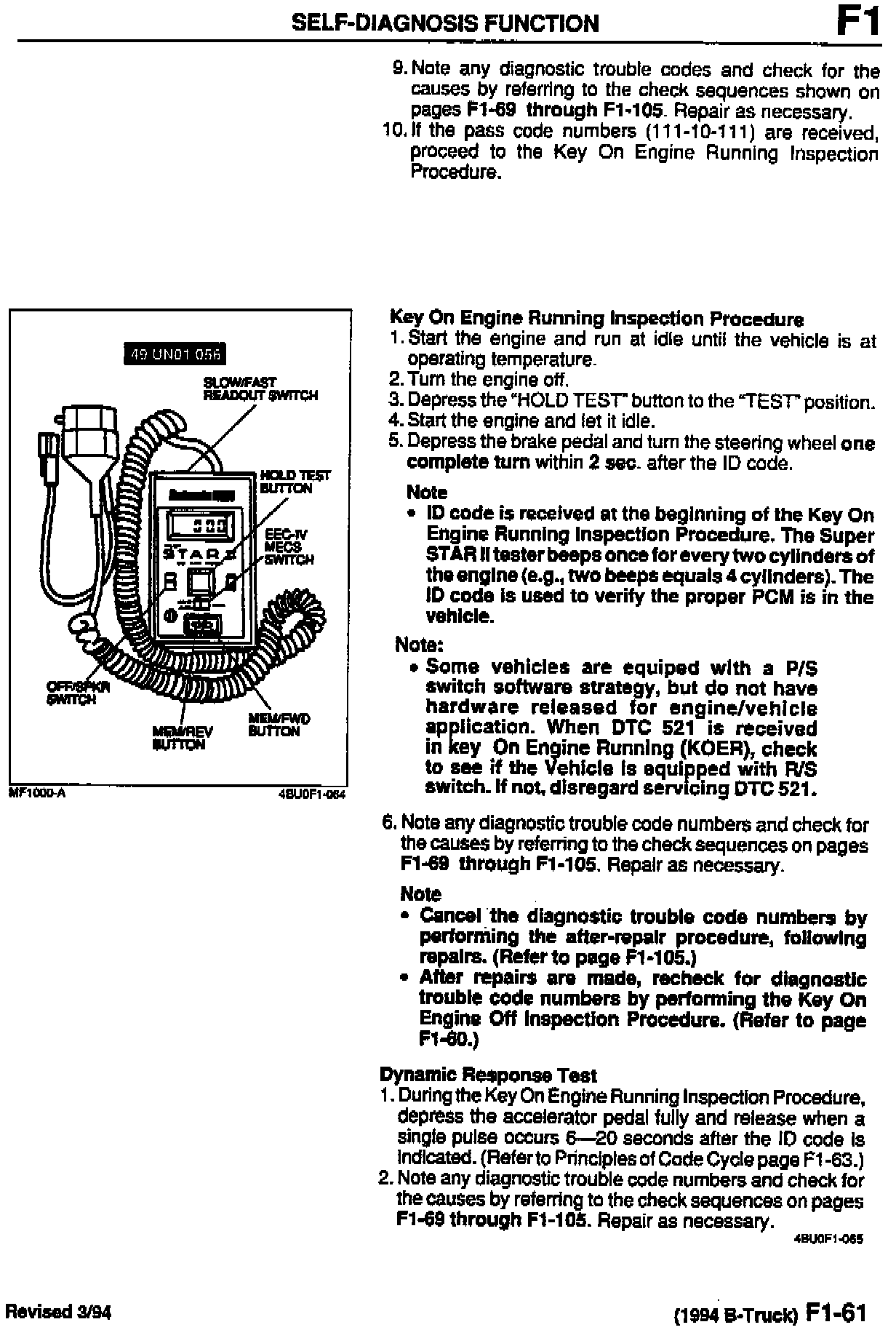

Page F1-61 - Correction to Self Diagnosis Function

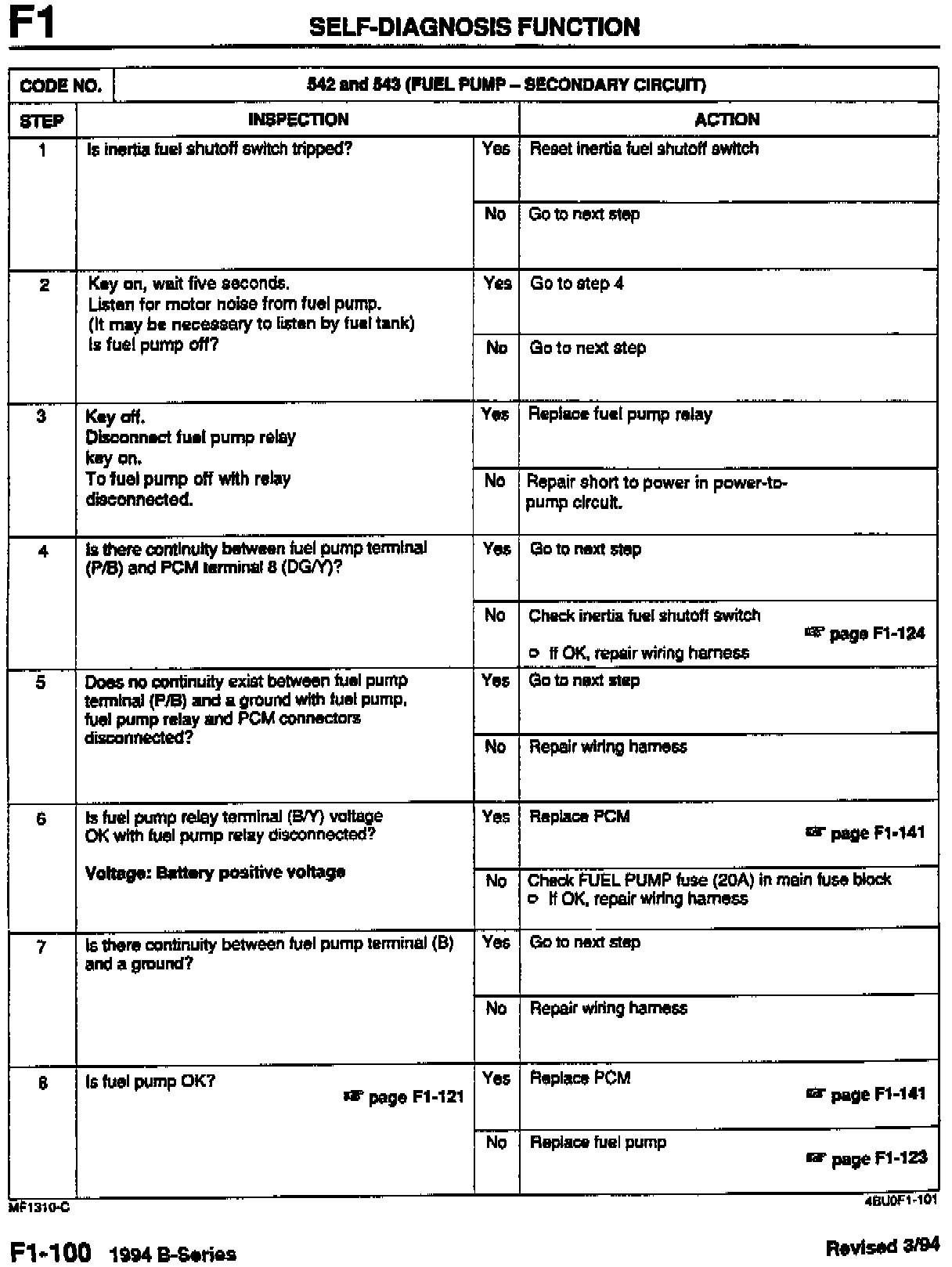

Page F1-100 - Correction to Self Diagnosis Function

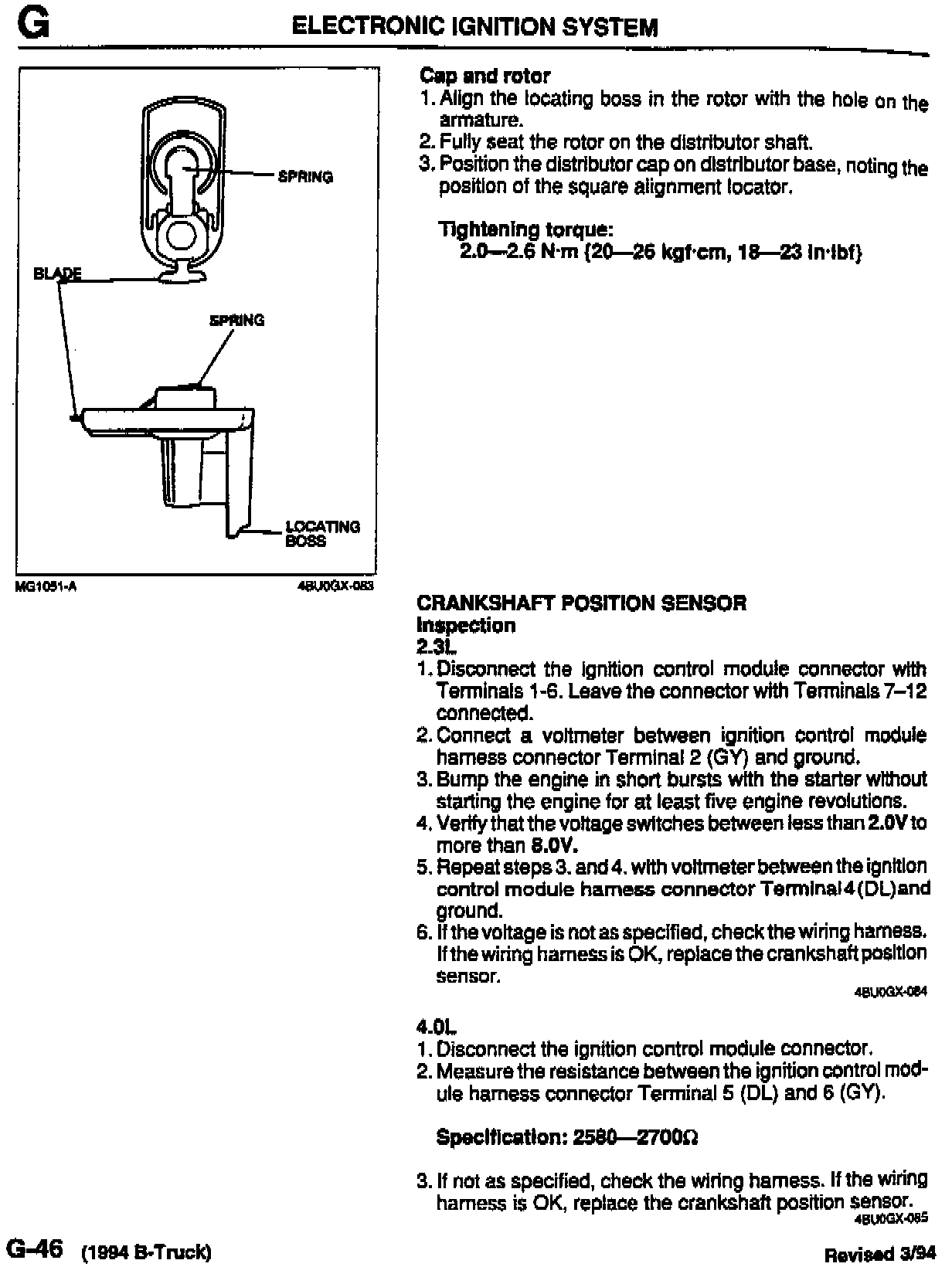

Page G-46 - Correction to Crankshaft Position Sensor Inspection

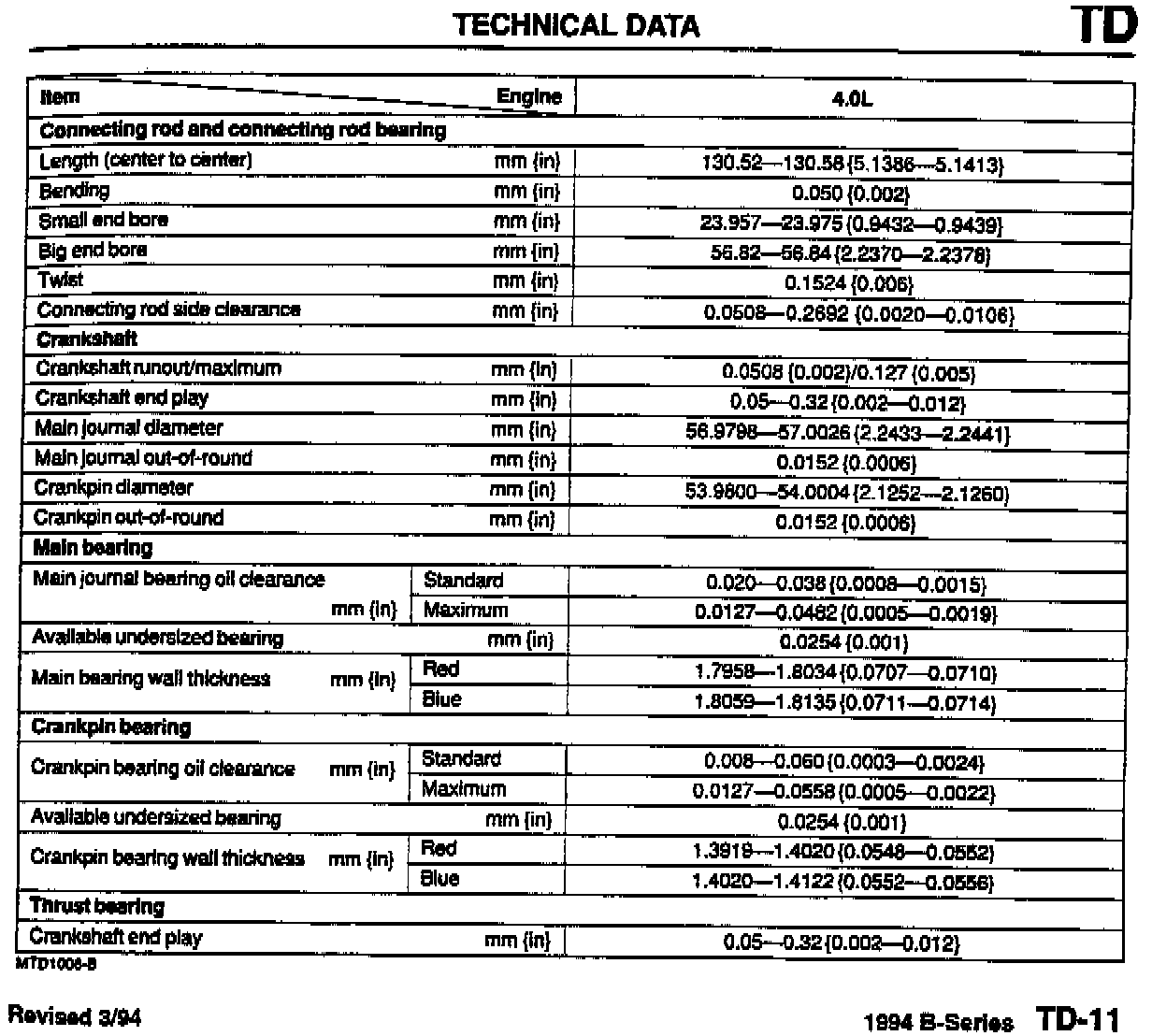

Page TD-11 - Correction to side clearance dimensions
1. Replace the original page in the binder style workshop manual with the 3-hole drilled replacement page.
NOTE:
For additional replacement large size pages or correction pages for the small size manual, please call Helm, INC. at (800) 782-4356 Monday through Friday, 9am to 5pm (EST) or fax (313) 883-1041.
Please list the correction bulletin number, category and quantity required. We have a limited supply of replacement pages. Orders will be filled on a first-come, first-serve basis. Allow five working days for delivery.
Reproductions of the manual will be updated prior to printing. Manuals purchased from the current inventory at Helm, Inc. will be supplied with the applicable correction pages.
