Pressure Feedback Exhaust Sensor: Diagrams

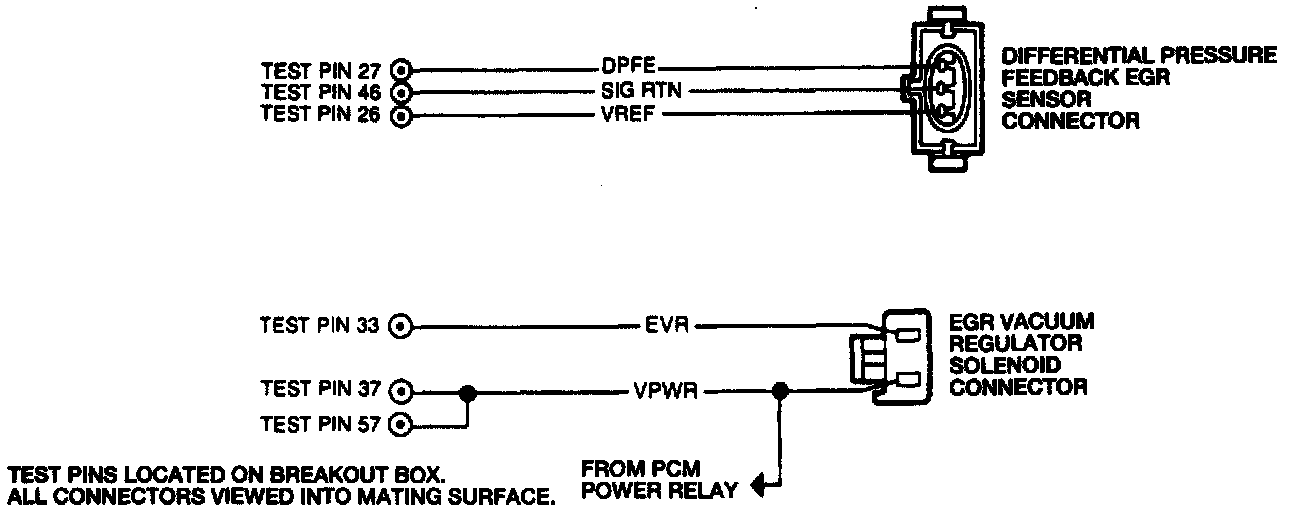

Differential Pressure Feedback EGR Sensor, EGR Vacuum Regulator Solenoid:
