Pressure Feedback Exhaust Sensor
>>
Testing and Inspection
>>
Service Tips
Service Tips
Service Tips:

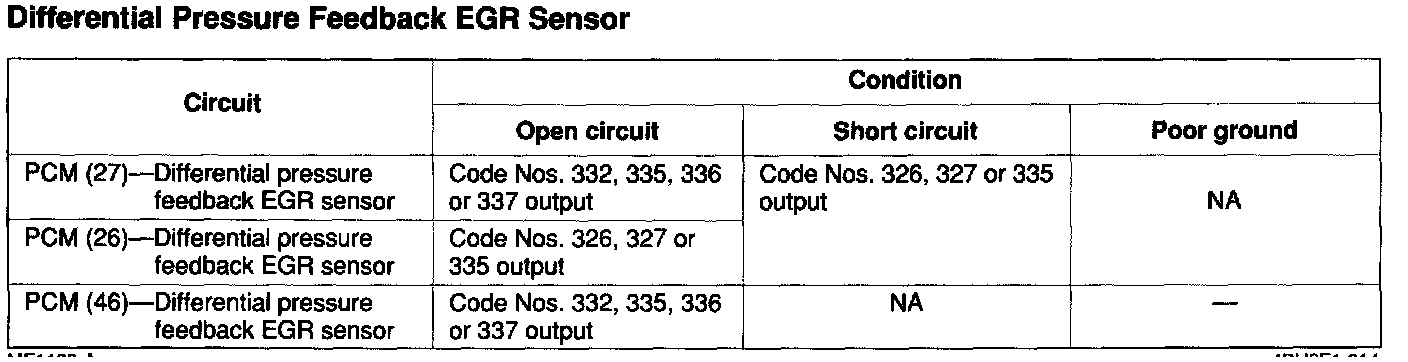

DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
(MT ONLY)
-
If the differential pressure feedback EGR sensor or circuit has an open or short, Diagnostic Trouble Code No. 326, 327, 332, 335, 336 or 337 is output.
