Initial Inspection

Engine Oil Dipstick:

PRELIMINARY INSPECTION

Engine Oil
1. Be sure the vehicle is on level ground.
2. Warm up the engine to normal operating temperature and stop it.
3. Wait for five minutes.
4. Remove the engine oil dipstick and check the oil level and condition.
5. Add or change oil as necessary.






Coolant (engine cold)

WARNING!
- Never remove the radiator cap while the engine is hot.
- Wrap a thick cloth around the cap when removing it.

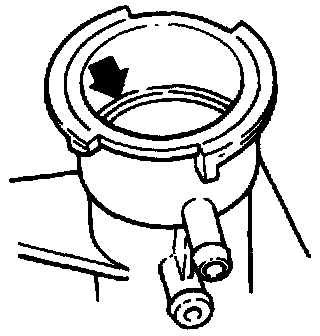

1. Verify that the coolant level is near the filler neck of the radiator.
2. If the coolant level is below the filler neck, add coolant as necessary.
3. Verify that the coolant in the reservoir is at the COLD FILL mark. Add coolant as necessary.

Battery

CAUTION!
- Because the battery is a maintenance-free battery, the fluid level need not be checked.
- Do not remove the vent caps.
- Be sure the top of the battery is clean. Clean it with baking soda and water, if necessary.

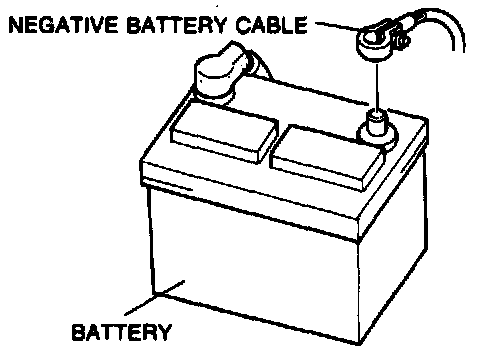

Battery:

1. Check the tightness of the terminals to ensure good electrical connections.
2. Check for corroded or frayed battery cables. Replace them as necessary.
3. Check the rubber protector on the positive terminal for proper coverage.
4. Clean the terminals if necessary, and coat them with grease.

Air Filter:

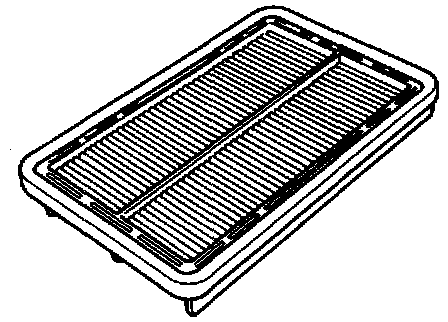

Air Cleaner Element
1. Check the air cleaner element for excessive dirt and for oil and damage.

CAUTION!
- Do not use compressed air to clean the element.

2. Replace the element, if necessary.
