Vehicle Speed Sensor: Description and Operation

Vehicle Speed Sensor:

CONSTRUCTION

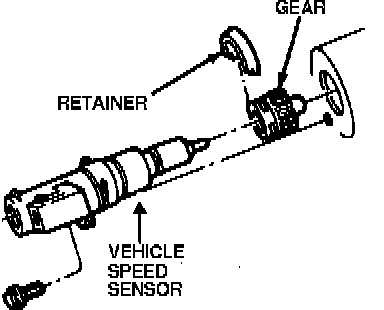

The Vehicle Speed Sensor is a magnetic pulse generator driven by the transmission speedometer gear.

OPERATION
The VSS produces 16 AC signals per revolution and sends this signal to the Powertrain Control Module (PCM). The PCM converts this signal to a vehicle speed value and stores that value in PCM memory.

DESCRIPTION
The PCM uses this value to aid in controlling torque converter lock-up, coolant fan control, vehicle speed control, air/fuel ratio, and igniting timing.
