Home
>>
Mazda
>>
1994
>>
B3000 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
Oxygen Sensor

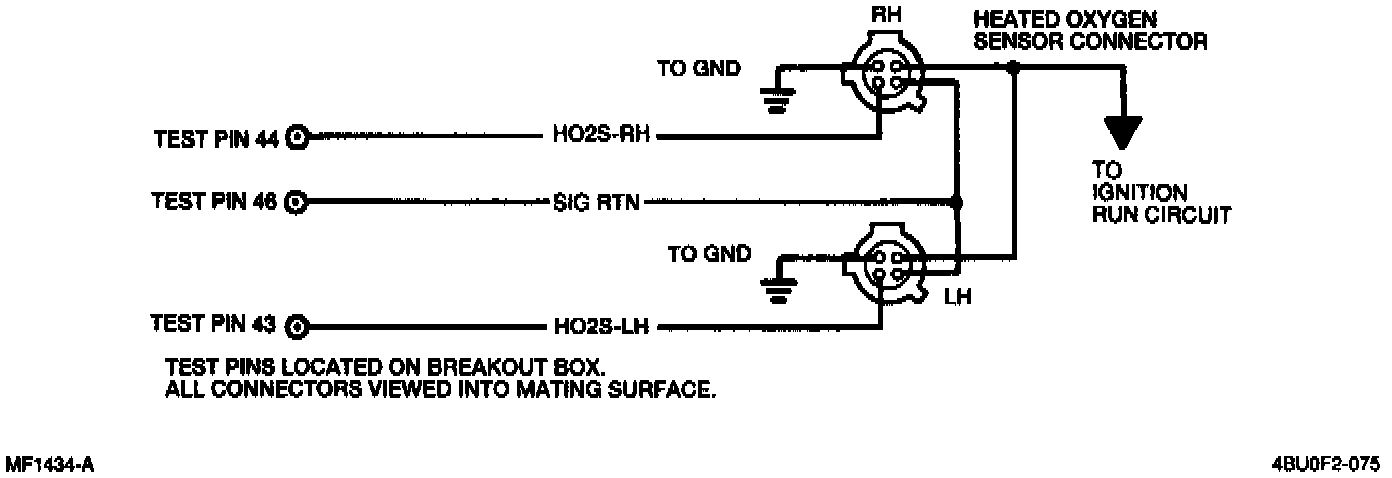

Heated Oxygen Sensor(s) (HO2S) (Test Connections):
