Fuel Filter: Locations

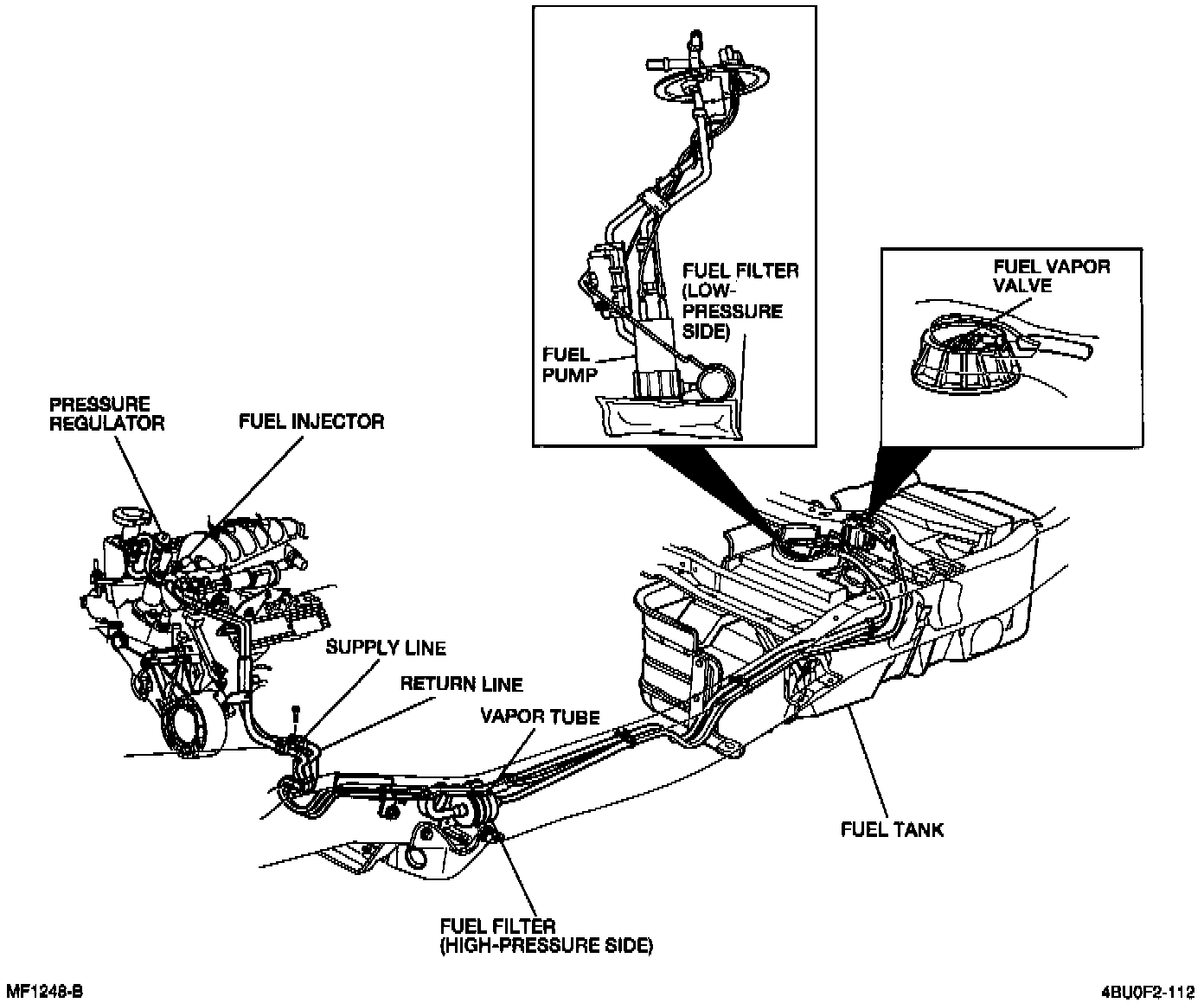

Fuel System Overview:

IN-LINE FILTER (HIGH PRESSURE SIDE)
Located on the Underside of the vehicle, mounted in the Left Side chassis frame rail.

FUEL PUMP INLET FILTER/SCREEN (LOW PRESSURE SIDE)
Located in the fuel tank mounted on the fuel pump inlet.
