Component

INSPECTION

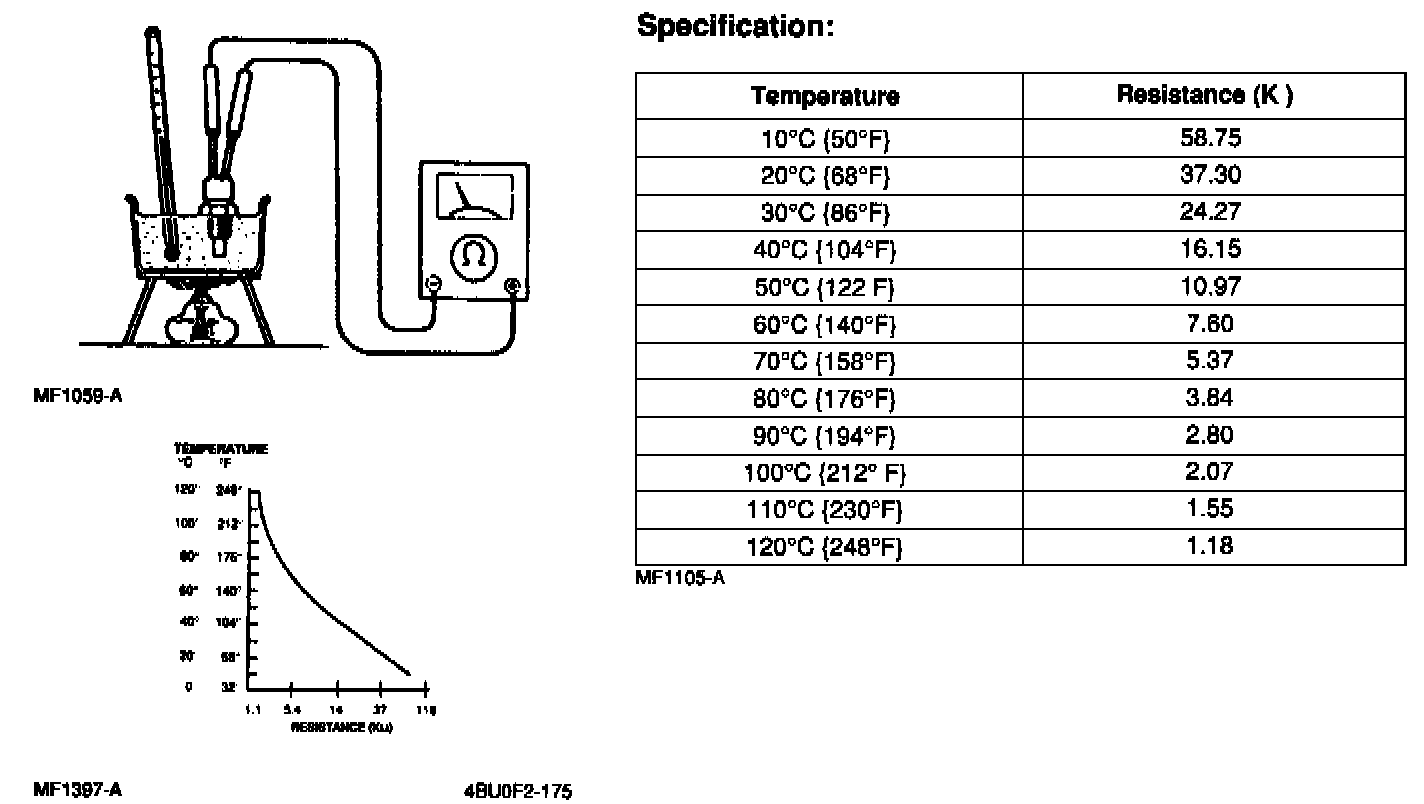

1. Place the sensor in water with a thermometer and heat the water gradually.

Testing the Intake Air Temperature Sensor:

2. Using a suitable Ohm meter, measure the resistance of the sensor.
3. If not as specified, replace the Intake Air Temperature Sensor
