Service Tips

Service Tip:

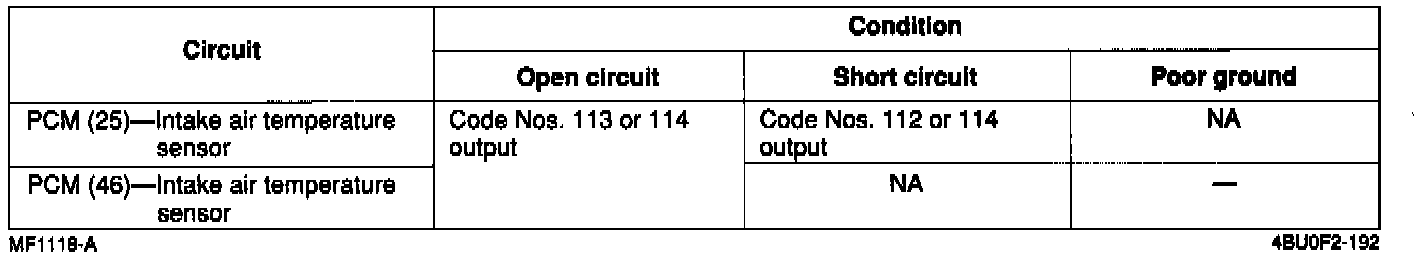

- If the intake air temperature sensor or circuit has an open or short, Diagnostic Trouble Code No. 112, 113 or 114 is output.
- If the intake air temperature sensor circuit fails, no particular symptom will be noticed.
