Camshaft Position Sensor
>>
Testing and Inspection
>>
Service Tips
Service Tips

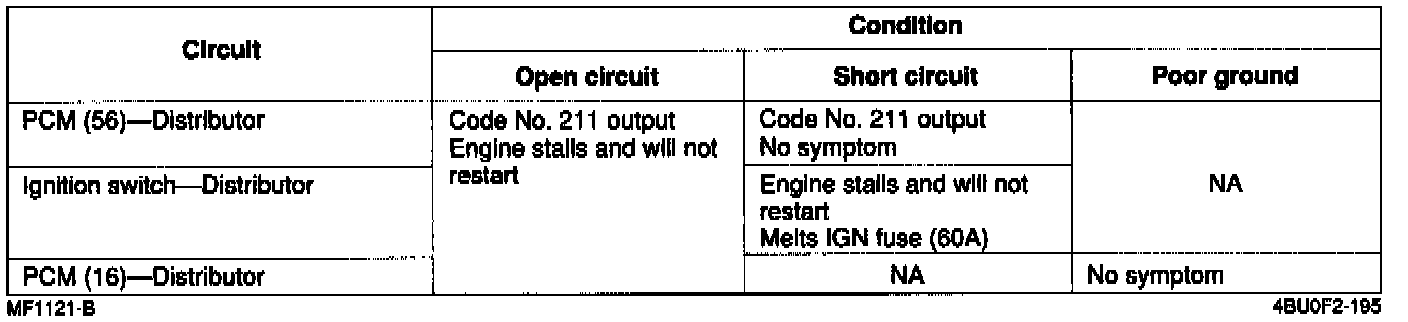

Service Tip:
-
If the
Camshaft Position Sensor
or circuit has an open or short, Diagnostic Trouble Code No. 211 is output.
-
If the
camshaft position sensor
circuit fails, the engine may stall and may not restart.
