Component (M/T Only)

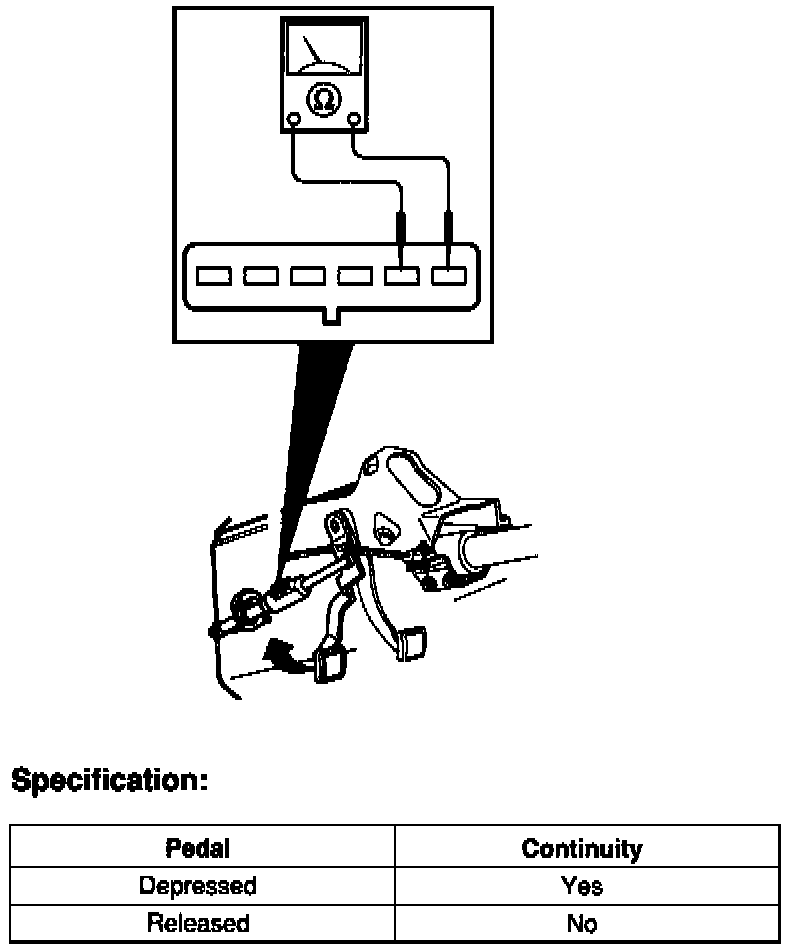

Clutch Pedal Position Switch (Test Connections):
INSPECTION 1.
Disconnect the clutch pedal position switch connector.
2.
Connect an ohmmeter to the switch, as shown.
3.
Check the continuity of the switch between the terminals, as shown.
-
With clutch pedal DEPRESSED--Continuity Exists.
-
With clutch pedal RELEASED--No Continuity Exists.
4.
If not as specified, replace the clutch pedal position switch.
