Ignition System, Engine Control System
Ignition System, Engine Control System

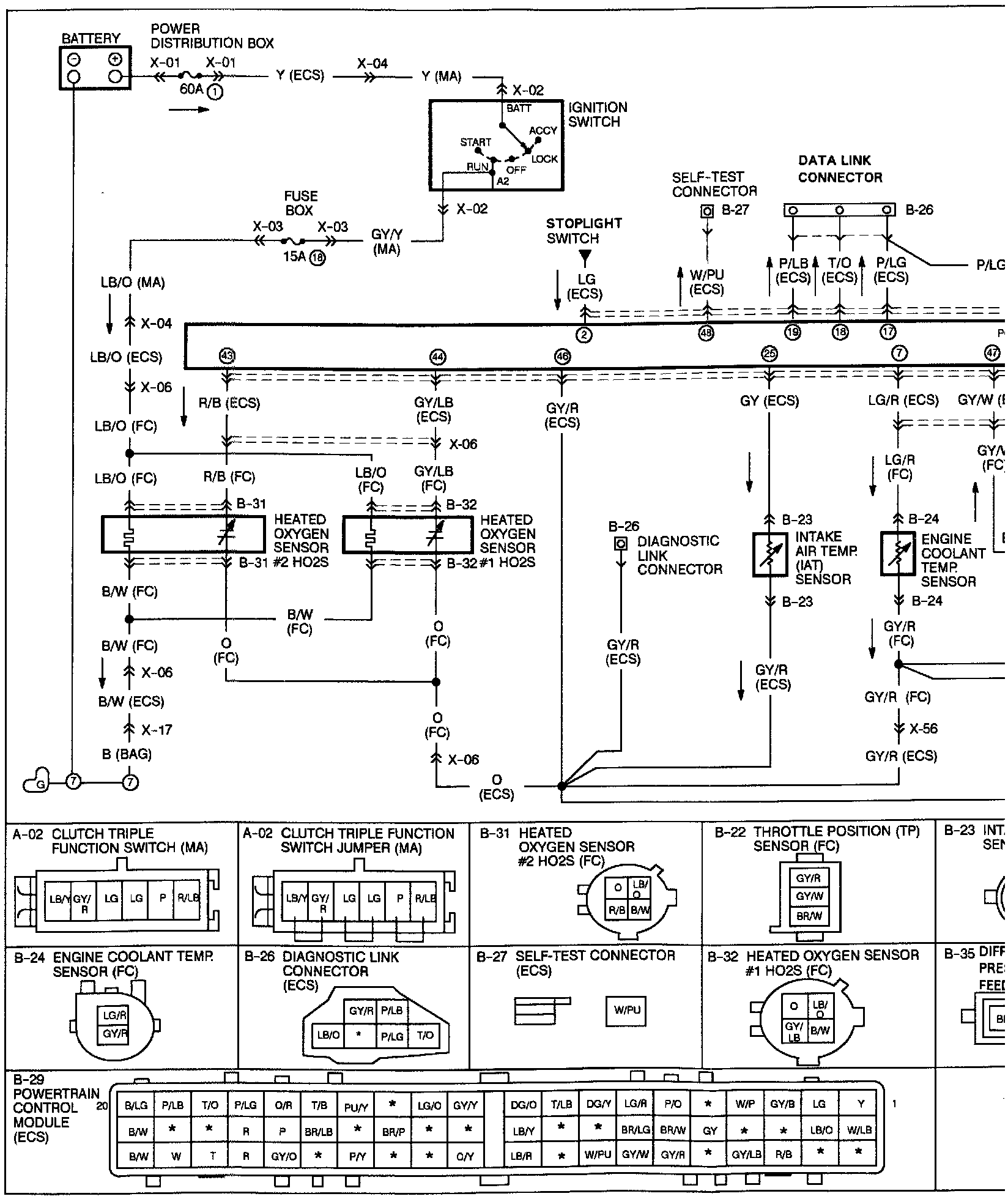

�?>Engine Control System Diagram (1 of 3):

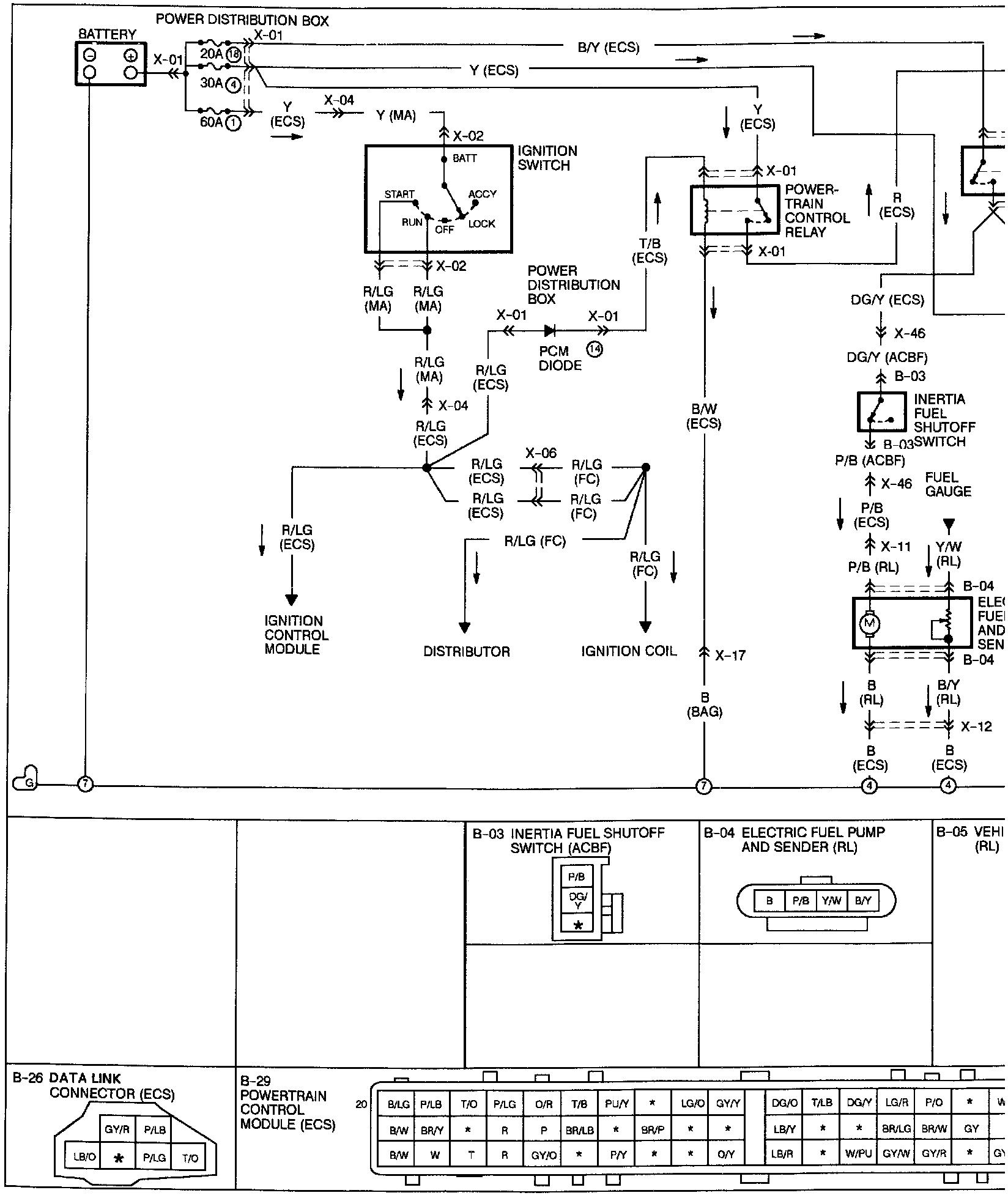

d`@>Engine Control System Diagram (2 of 3):

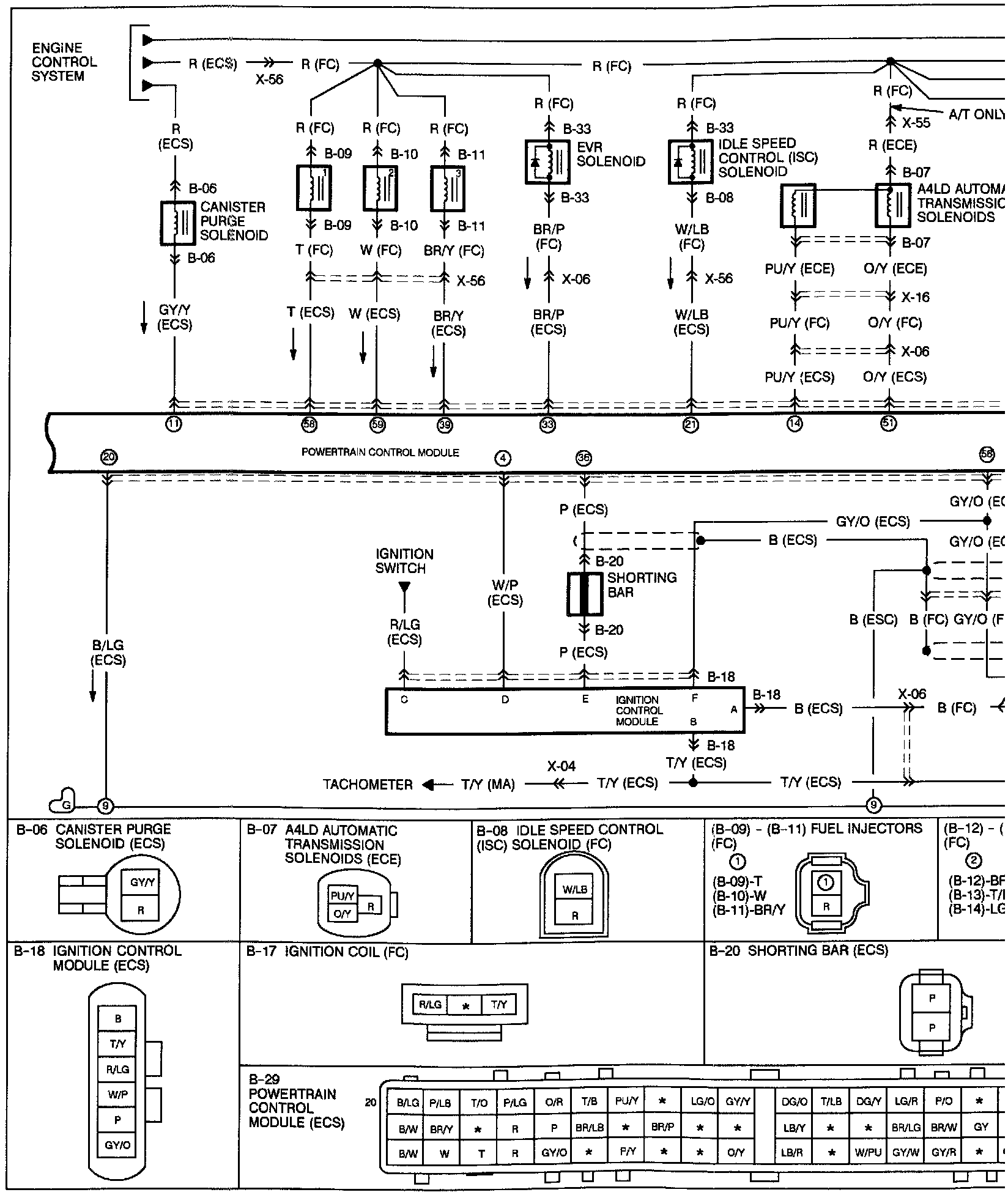

x�]$Engine Control System Diagram (3 of 3):
