Service Tips
Service Tip:
-

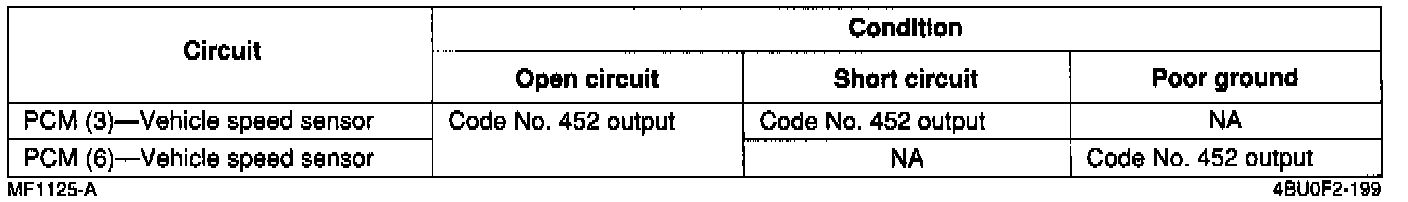

If the
vehicle speed sensor
or circuit has an open or short, Diagnostic Trouble Code No. 452 is output.
-
If the
vehicle speed sensor
circuit fails, no 3-4 or 4-3 shifts or torque converter lockup (AT) will occur.
