Ignition Coil: Service and Repair

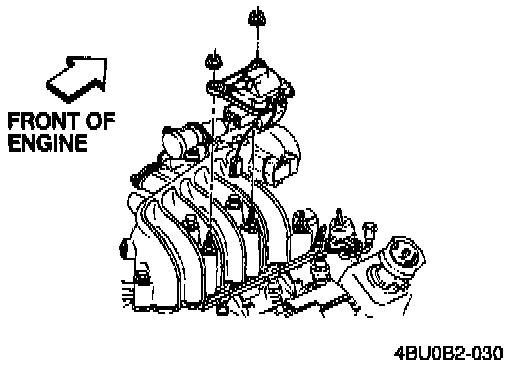

View: Typical Ignition Coil Mounting Position:
REMOVAL OF IGNITION COIL 1.
Disconnect the harness connector and the High-Tension Lead.
2.
Remove the
Ignition Coil fasteners.
3.
Remove the
Ignition Coil.
INSTALLATION 1.
Install in the reverse order of removal.
