PCM Pins 1 Through 8
PCM Pins 1 Through 8

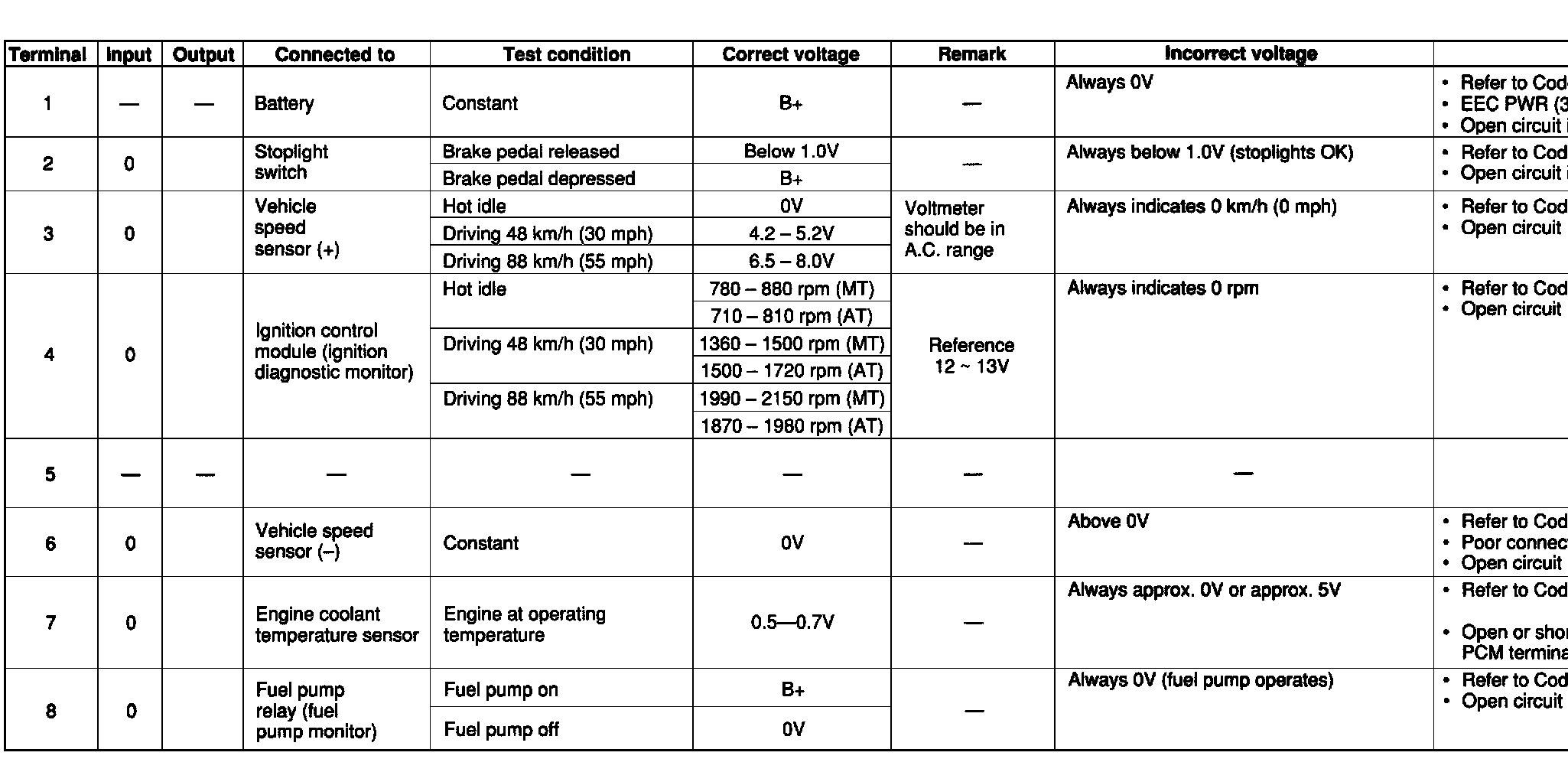

�� PCM Pins 1 Through 8 NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values may vary with axle ratios and tire size.:
