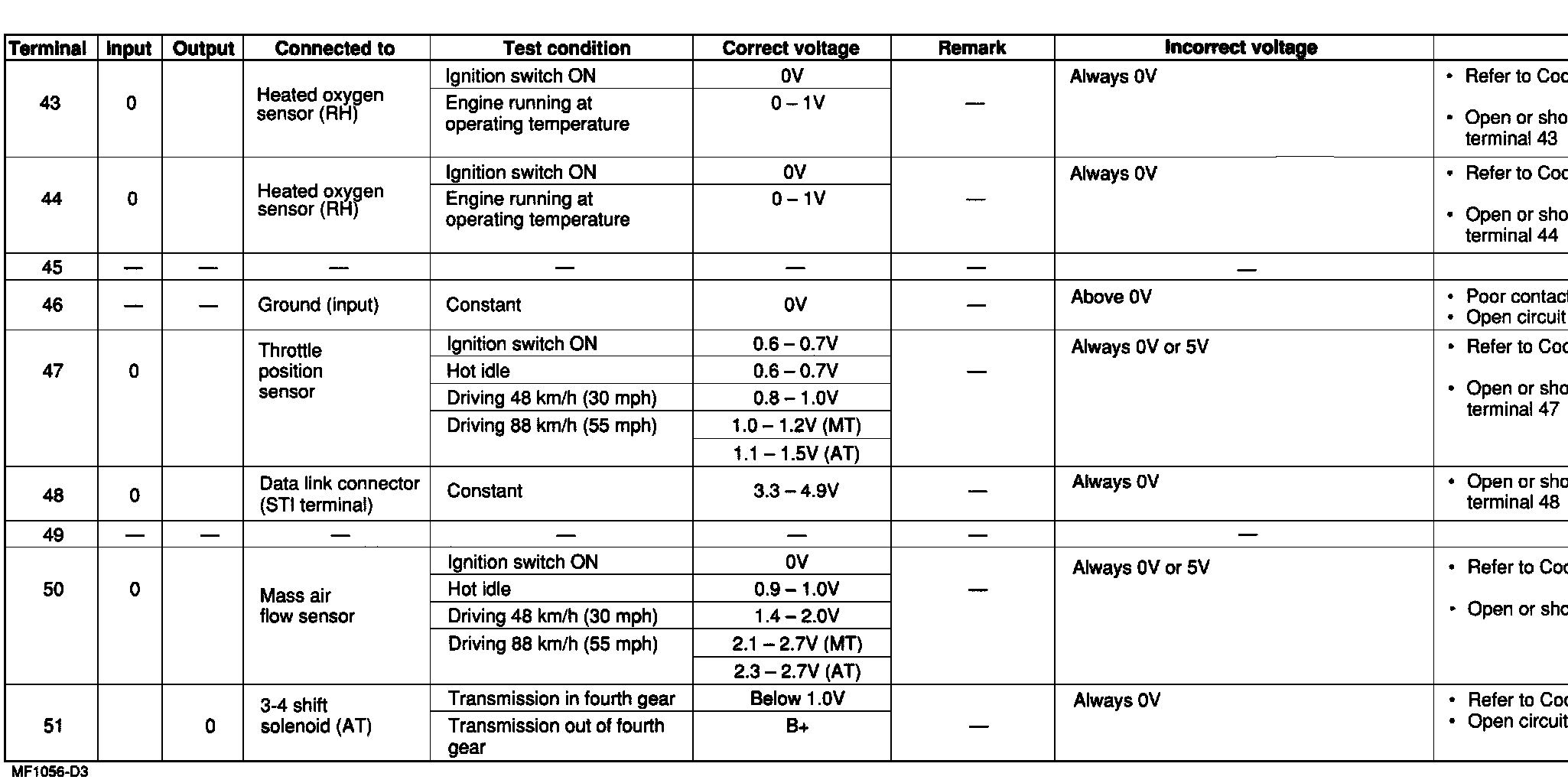

PCM Pins 43 Through 51
PCM Pins 43 Through 51
d�� PCM Pins 43 Through 51 NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values may vary with axle ratios and tire size.:
