Torque Specifications

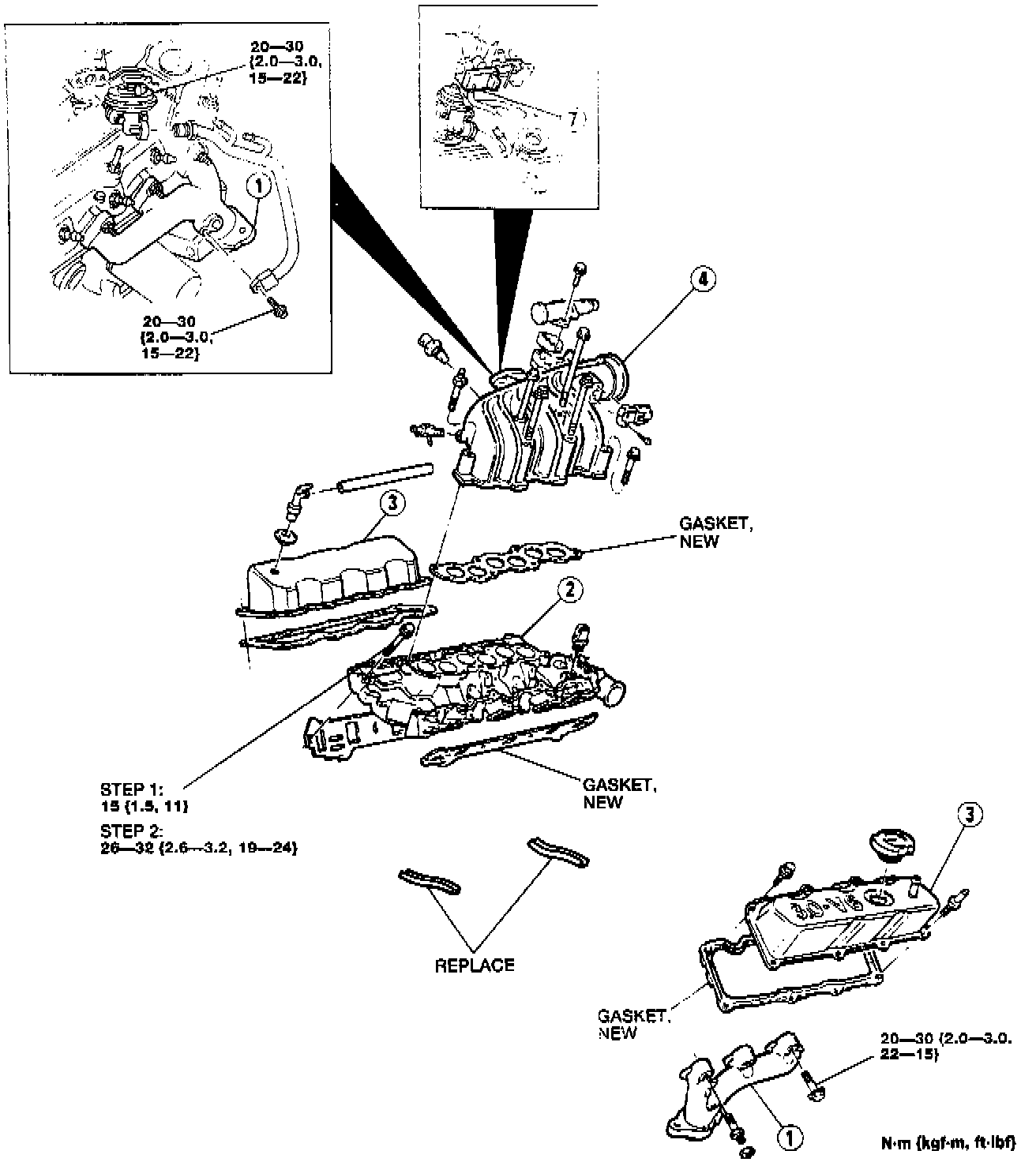

Intake/Valve Cover:

Head Bolts:

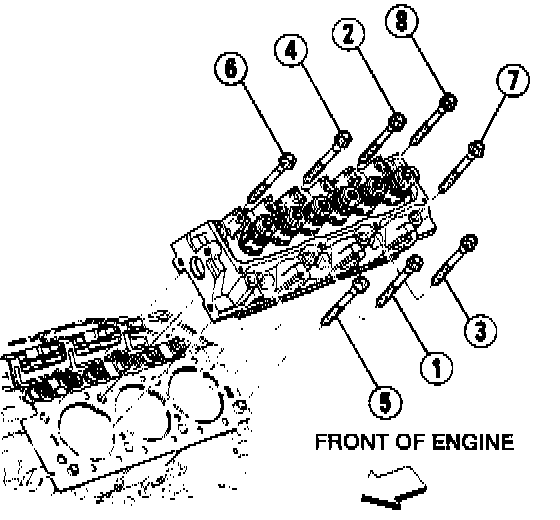

Tighten the bolts in sequence as shown in the figure.

Tightening torque:
1. 80 Nm (59 ft-lb)
2. Back off all of the bolts a minimum of one full turn (360°).
3. 45-55 Nm (33-41 ft-lb)
4. 85-99 Nm (63-73 ft-lb)

Note: When the cylinder head bolts have been tightened using the above procedure it is not necessary to retighten the bolts after extended engine operation.

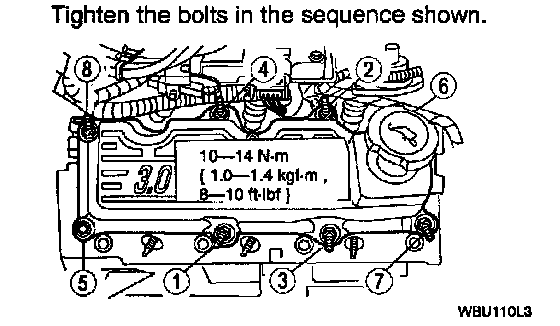

Valve Covers:

Timing Components:

Crankshaft Pulley:

Oil Pan:

Lower Engine:

Oil Pump:

Main Bolt Torque/Sequence:

Flex Plate (A/T) Torque/Sequence:

Flywheel (M/T) Torque/Sequence:
