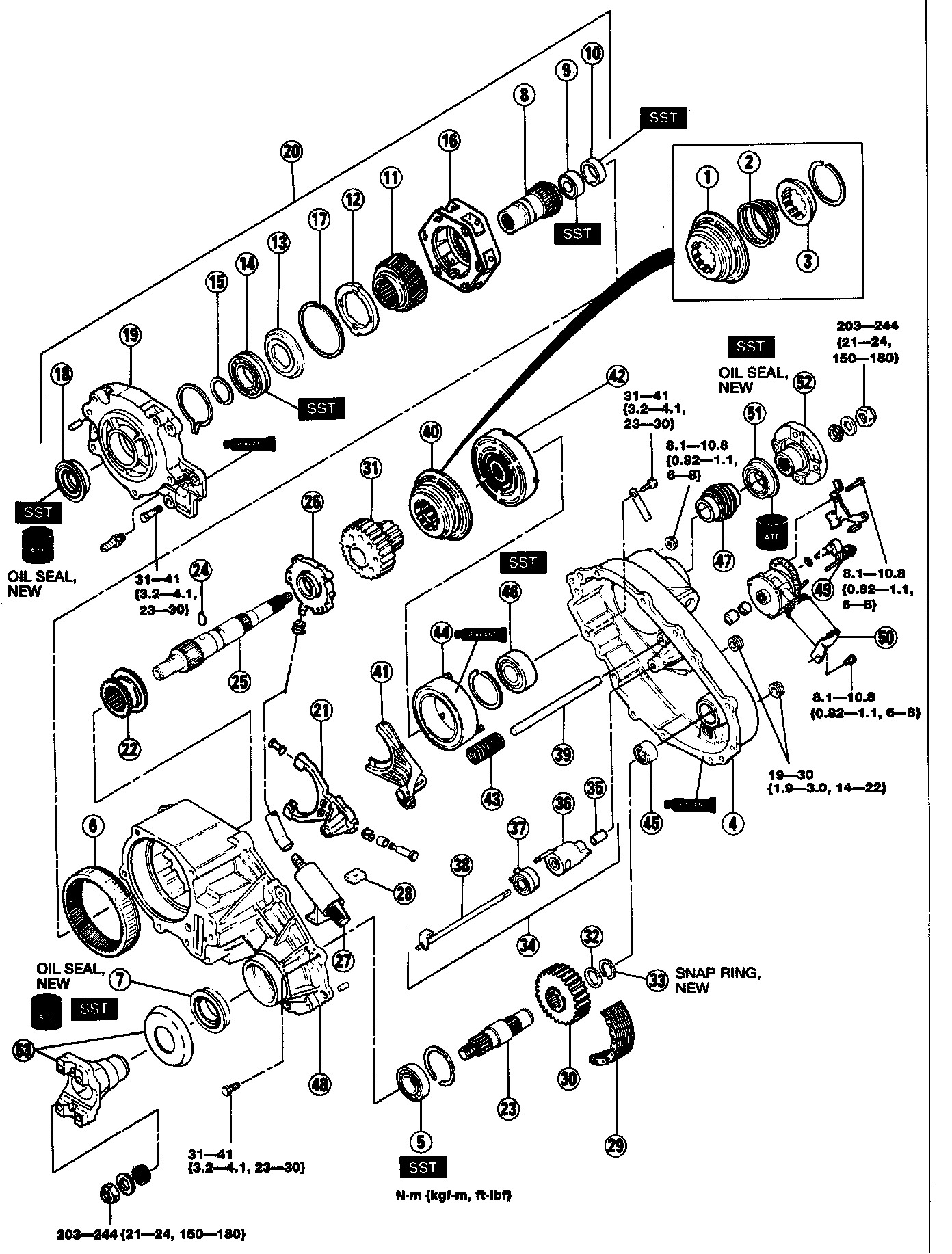

Transfer Case

1. Lockup collar
2. Sleeve return spring
3. Lockup hub
4. Chain cover
5. Front output shaft bearing (Transfer case side)
6. Ring gear
7. Oil seal
8. Input shaft
9. Needle bearing
10. Bearing sleeve
11. Sun gear
12. Thrust plate
13. Thrust washer
14. Ball bearing
15. Snap ring
16. Planet carrier
17. Snap ring
18. Oil seal
19. Front adapter
20. Front adapter, planet carrier and input shaft assembly
21. H-L shift fork
22. H-L hub
23. Front output shaft
24. Oil pump drive pin
25. Rear output shaft
26. Pump assembly
27. Oil pump filter
28. Magnet
29. Chain
30. Front drive sprocket
31. Drive sprocket
32. Thrust washer
33. Snap ring
34. Shift cam assembly
35. Spacer
36. Shift cam
37. Torsion spring
38. Shift shaft
39. Shift rail
40. 2W-4W lockup assembly
41. 2W-4W shift fork
42. Clutch housing
43. Spring
44. Clutch coil
45. Front output shaft bearing (Chain cover side)
46. Bearing
47. Speedometer drive gear
48. Transfer case
49. Speed sensor
50. Motor assembly
51. Oil seal
52. Rear yoke
53. Front yoke
