Ignition Cable: Testing and Inspection

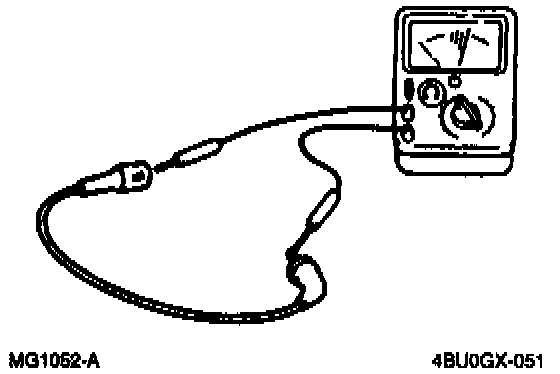

View: Ohm Testing High-Tension Lead:

- Connect a suitable Ohm meter to the High-Tension Lead, as shown.
- Measure the resistance of each lead.

Resistance should be less than 22.9 K Ohms per 1m (3.28 ft.).
