Ignition Timing Connector: Locations

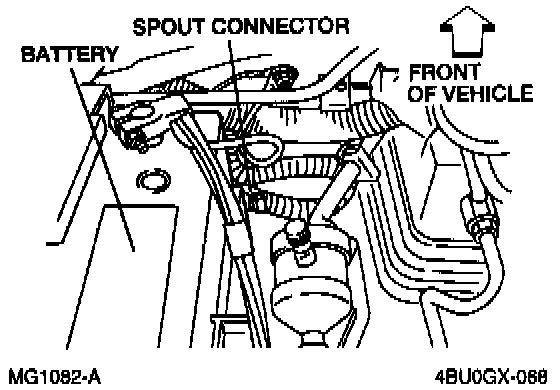

Spark Output (SPOUT) Connector Used For Ignition Timing Checks:

The Spark Output (SPOUT) connector is taped to an electrical harness located in front of the engine compartment on the left side of the vehicle.
