System Performance Test

1 Run engine at 1500 RPM for 10 minutes.
2. Place air conditioner switch in Max. position and place blower on High.
3. Record clutch on and off time in seconds.
4. Record center register discharge temperature.
5. Determine and record ambient temperature.
6. Compare readings to Fig. 6.

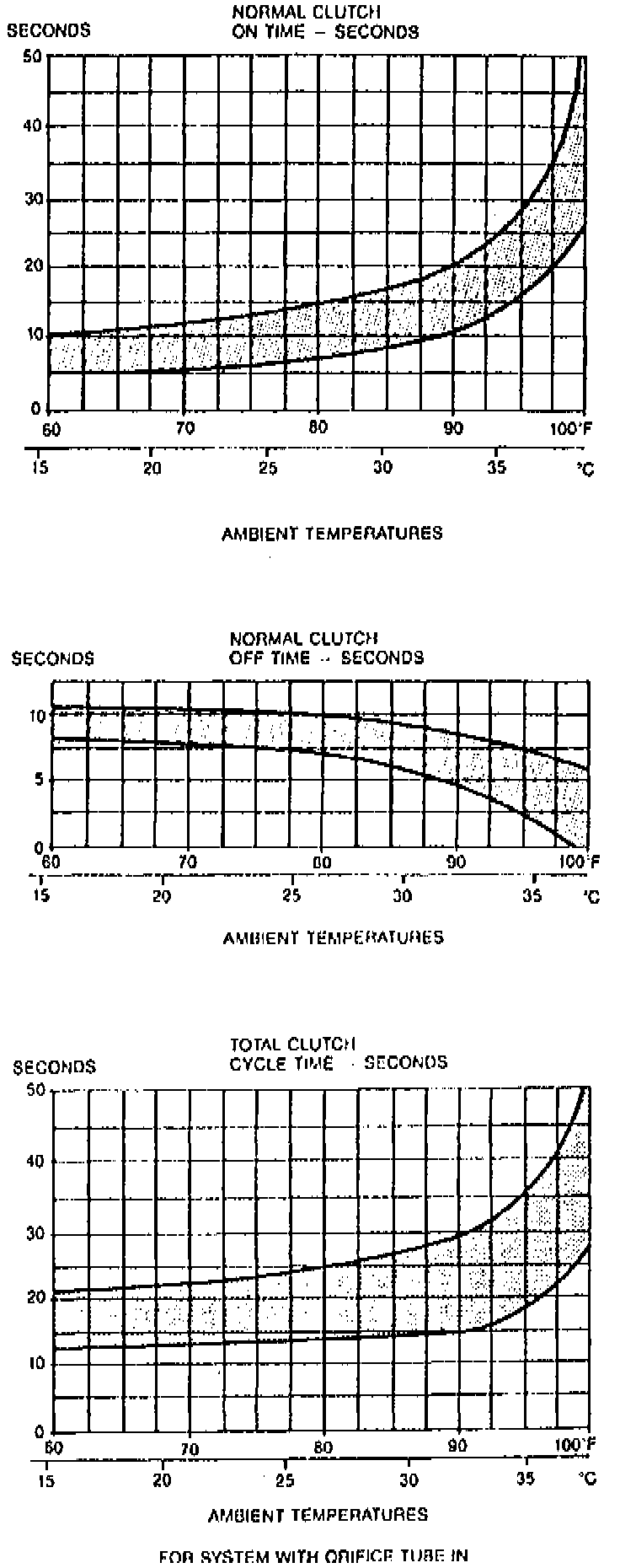

Fig. 6 A/C Operation Chart:
