Brake Switch (Cruise Control): Testing and Inspection
Refer to
Fig. 53
for testing.

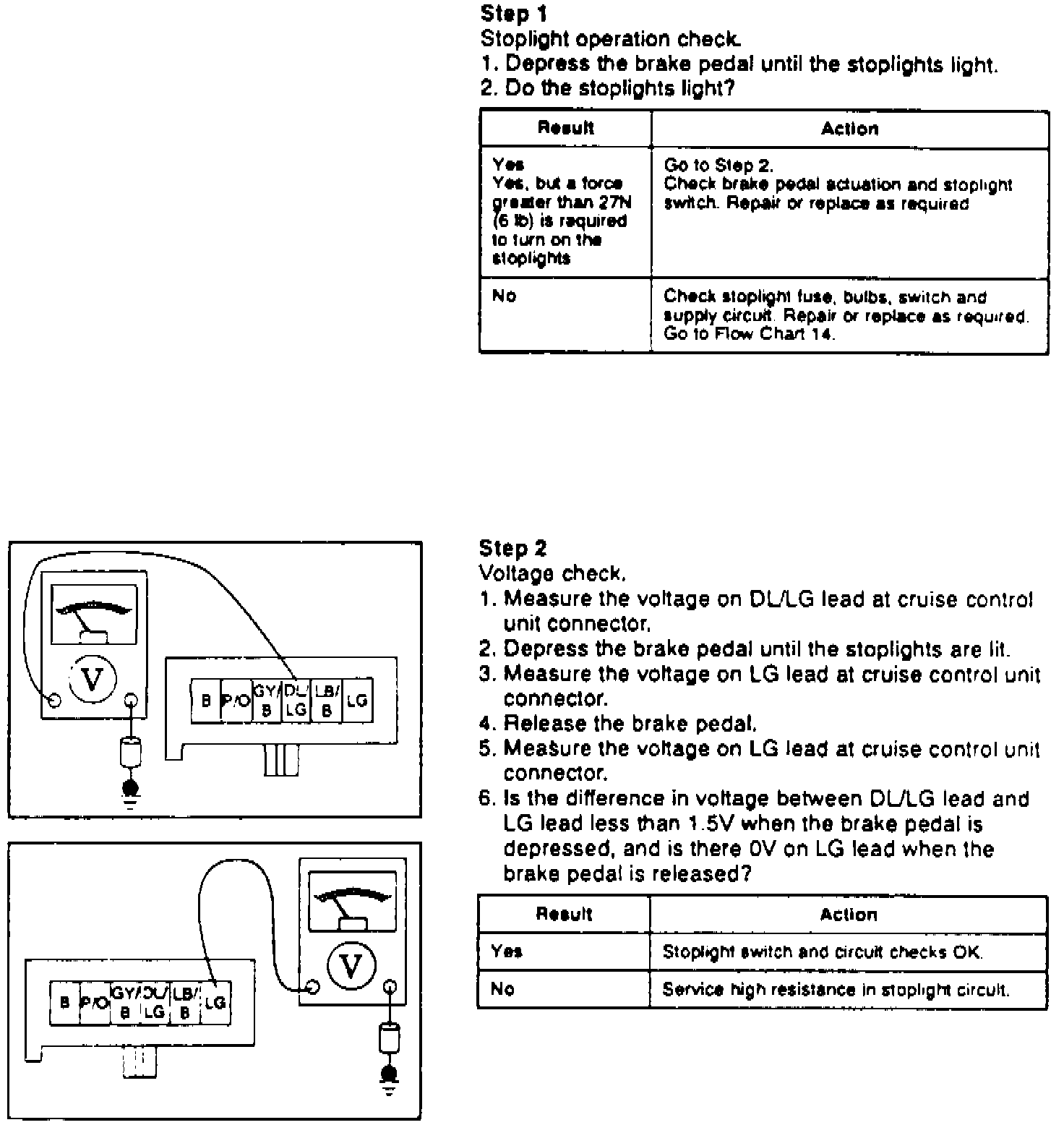

Fig. 53 Stop Light Switch & Circuit Test:
