Home
>>
Mazda
>>
1994
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Joint Box
Joint Box

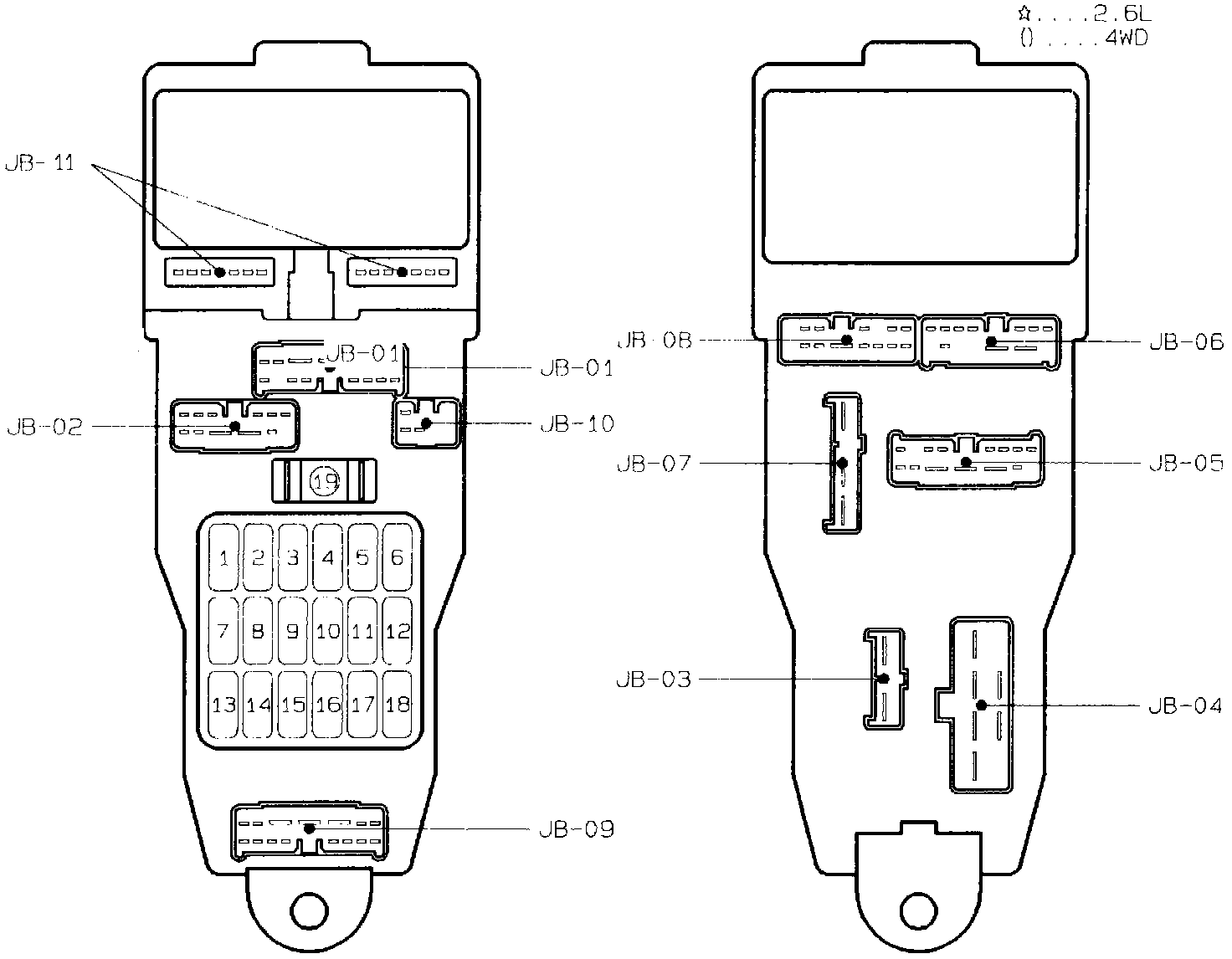

JB Connector Location:
