Catalytic Converter: Service and Repair

TWC R&R:

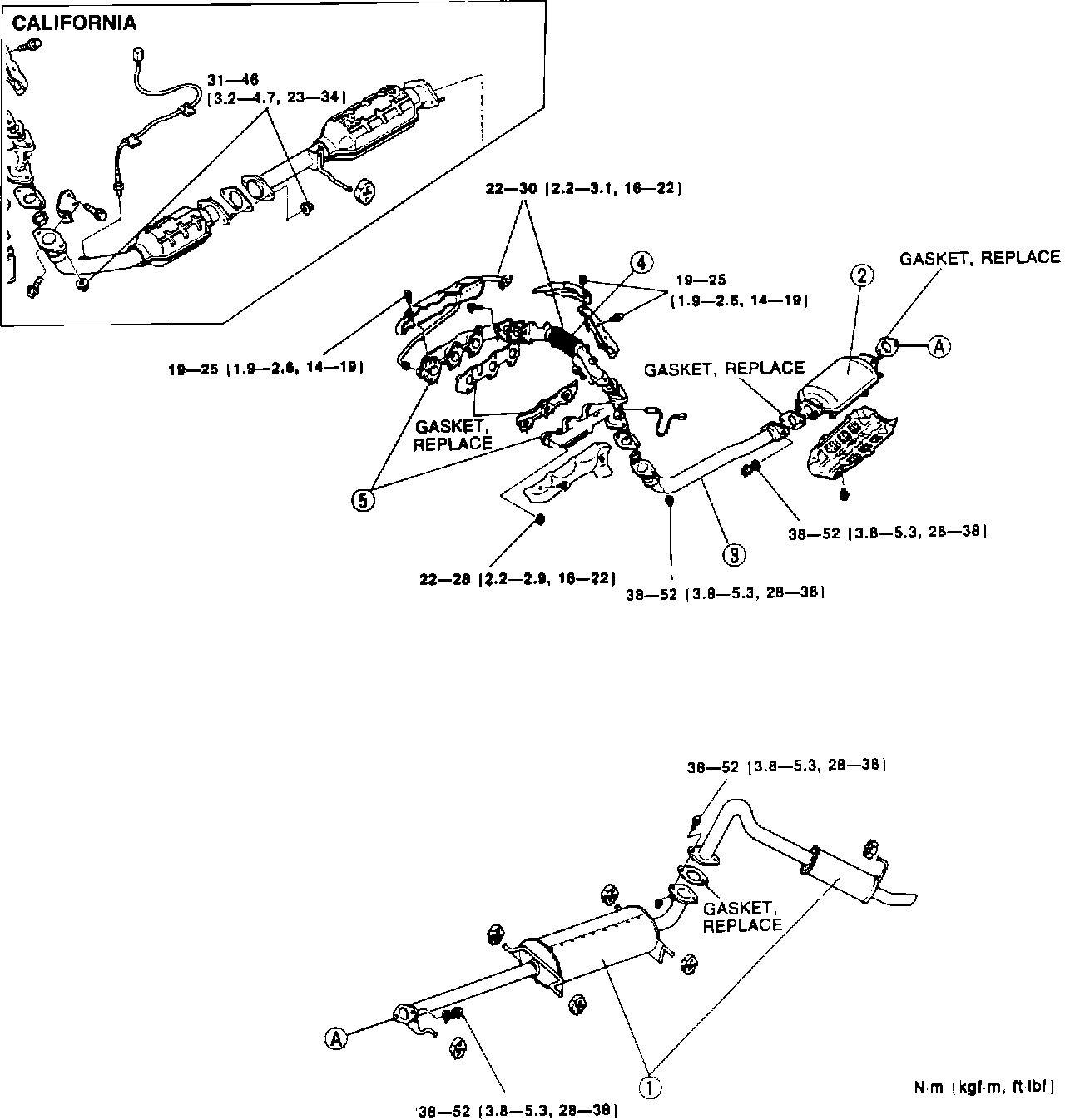

1. Remove in order shown on image.
2. Inspect all parts and repair or replace as needed.
3. Assemble in reverse order of removal.

COMPONENTS

1. After silencer and main silencer
2. Three-way catalyst
3. Front exhaust pipe
4. Center exhaust pipe
5. Exhaust manifolds
