Electronic Brake Control Module: Testing and Inspection

When checking resistance at control unit terminals, always disconnect battery ground cable.
1. Remove rear side trim A, then disconnect harness connector from control unit.

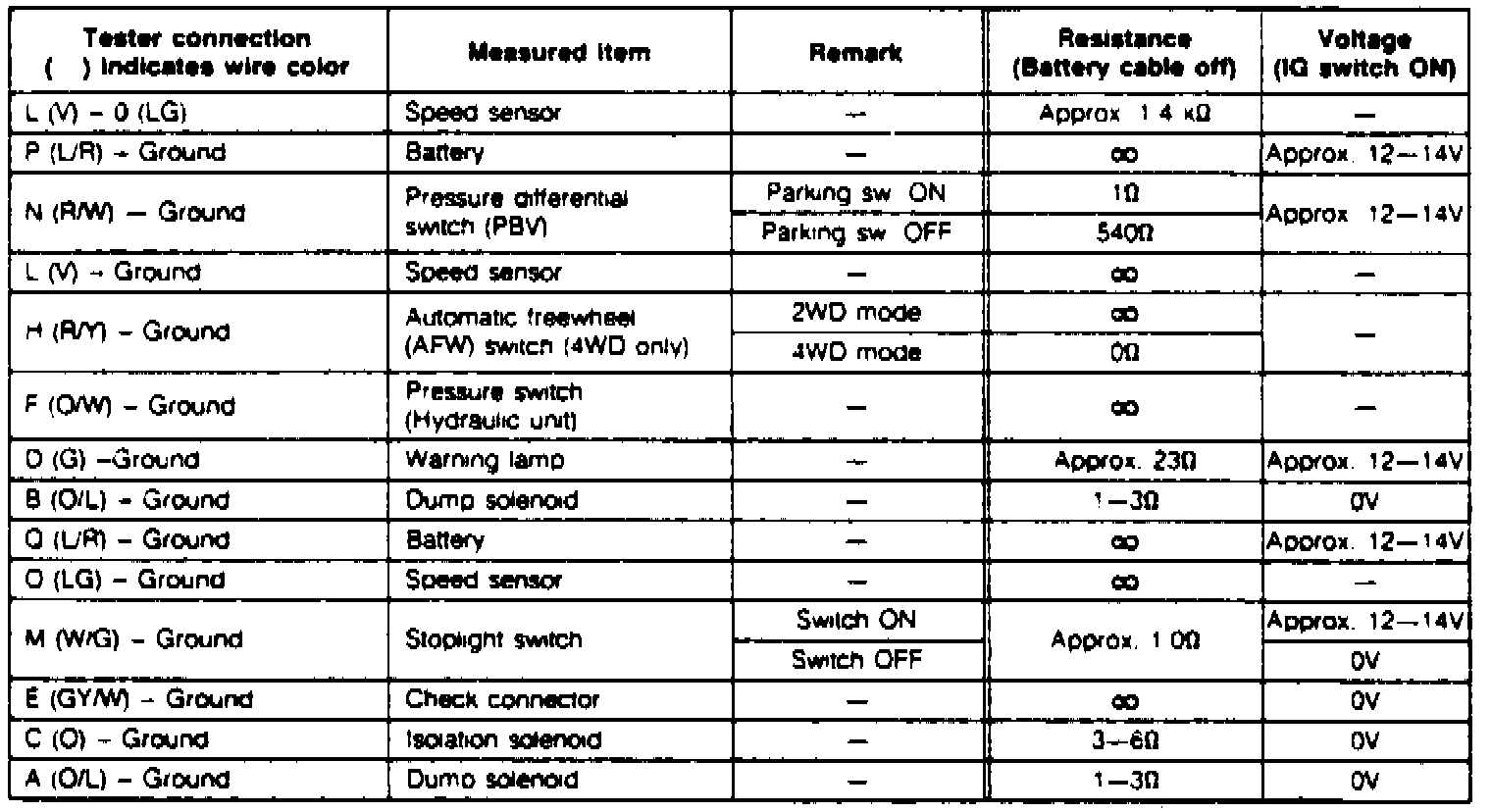

Fig. 126 Control Unit Voltage/Resistance Specification:

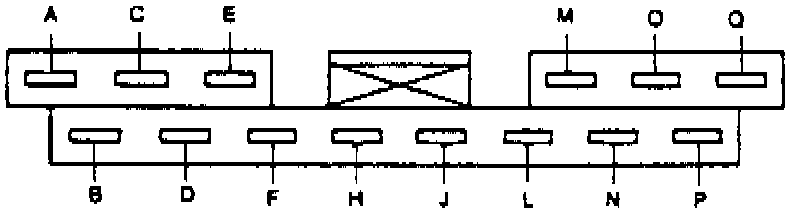

Fig. 127 Control Unit Connector Terminal Identification:

2. Check control unit harness connector terminals for voltage or resistance, Fig. 126 and 127.
