Neutral Safety Switch: Description and Operation

Park/Neutral Switch:

PURPOSE
Signals PCME as to transmission operating range and prevents vehicle starting except in "P" or "N" positions.

PCME uses transmission operating range input in its control calculations for these outputs:
^ Fuel injection quantity
^ Ignition timing
^ Pressure regulator solenoid valve
^ Idle speed control
^ Purge solenoid valve
^ A/C cut-off

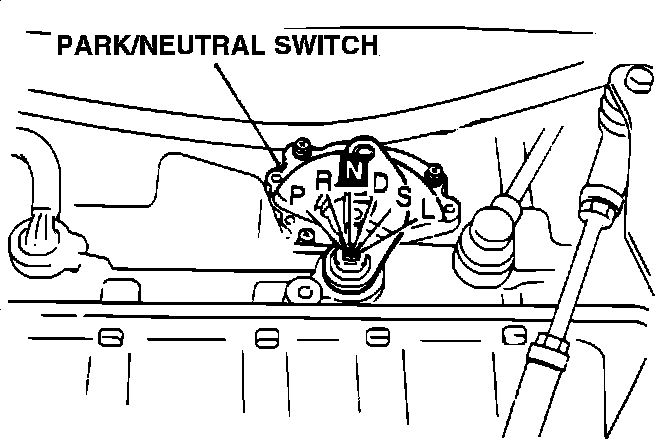

LOCATION
Right side of transmission.
