Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1994
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
EC-at Control System
EC-at Control System

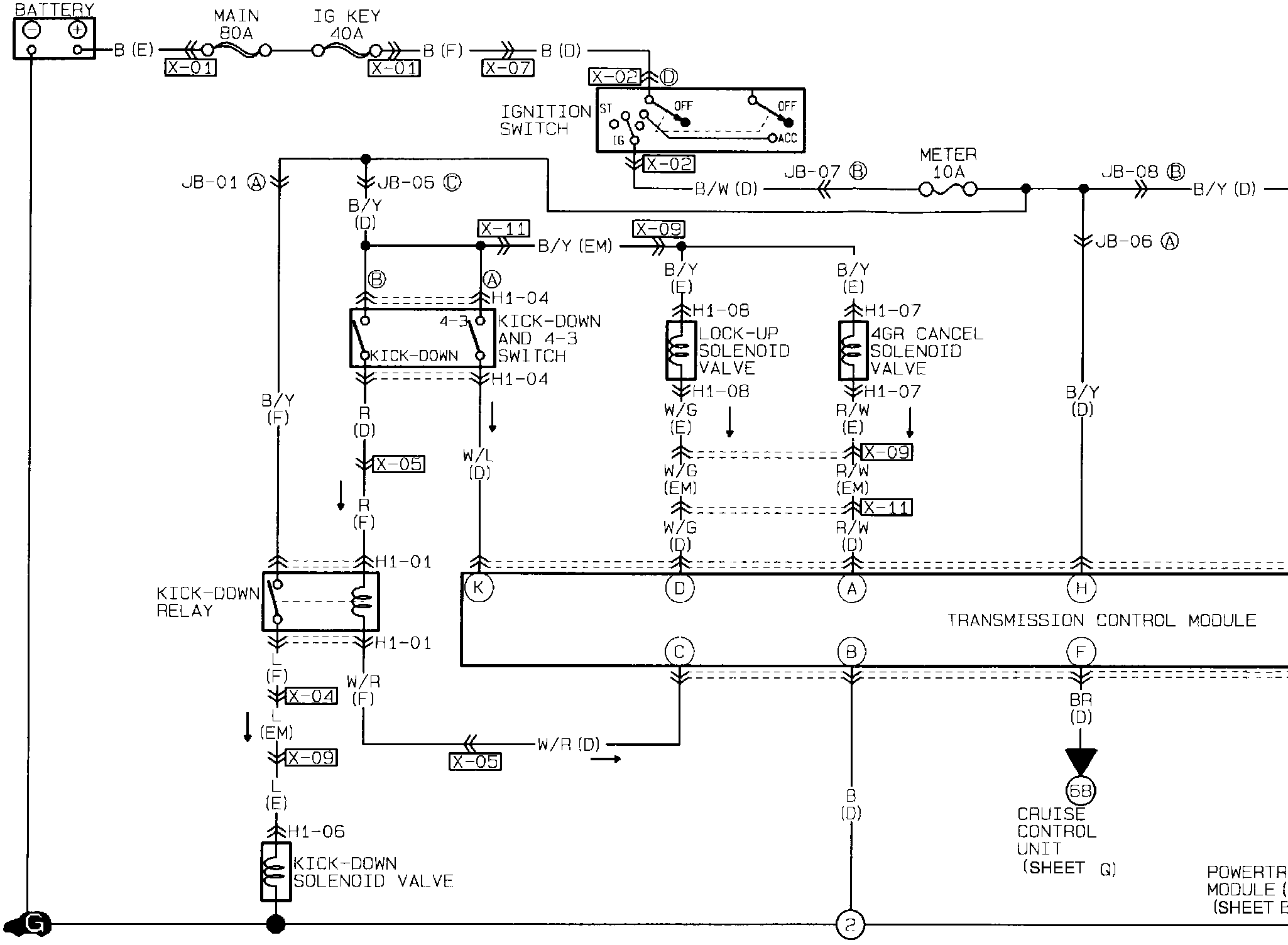

q;H4AT Control System, Shift-Lock System:
