Home >> Mazda >> 1994 >> MPV L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> Central Processing Unit (CPU) (2/2)

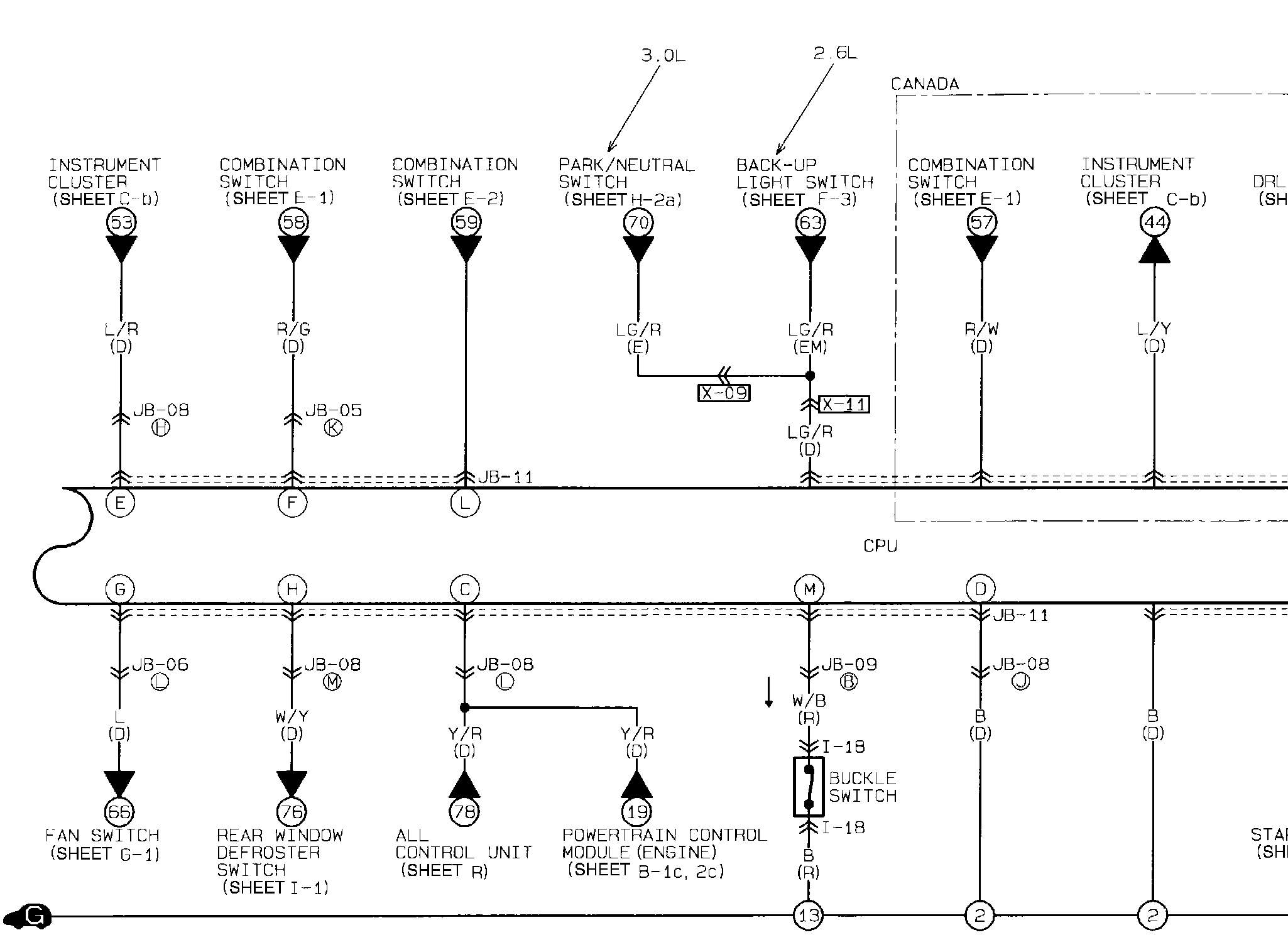

Central Processing Unit (CPU) (2/2)

@��Central Processing Unit (CPU) (2/2):
