Thermostat, Engine Cooling

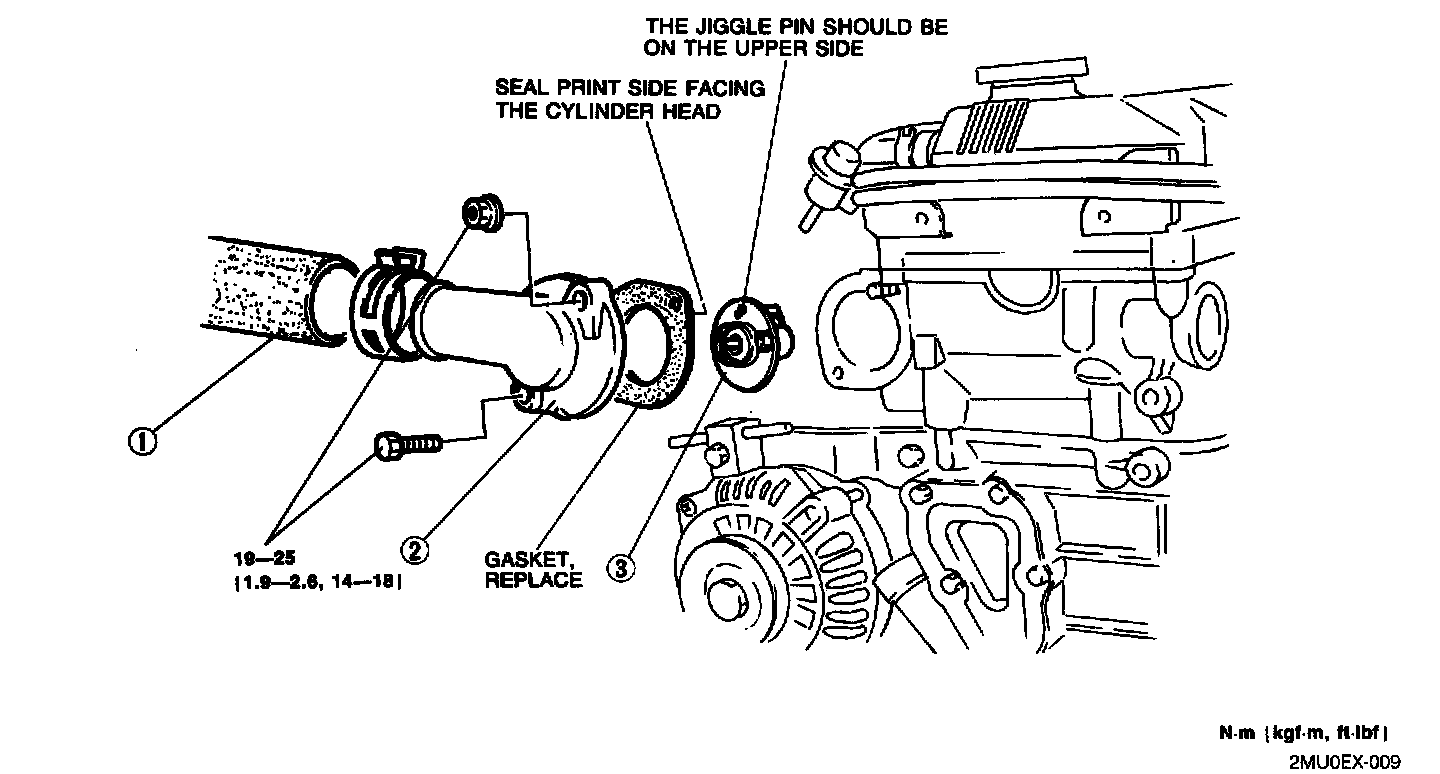

Thermostat, Engine Cooling
(1) Upper Radiator Hose (2) Thermostat Cover (3) Thermostat:
