Blower Motor Resistor: Service and Repair

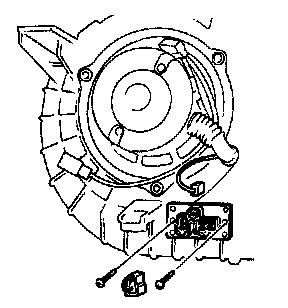

Resistor Assembly

Removal
1. Remove the passenger-side lower panel and undercover.
2. Disconnect the resistor assembly connectors.
3. Remove the screws and the resistor assembly.


Installation
- Install in the reverse order of removal.
