Evaporator Temperature Sensor / Switch: Service and Repair

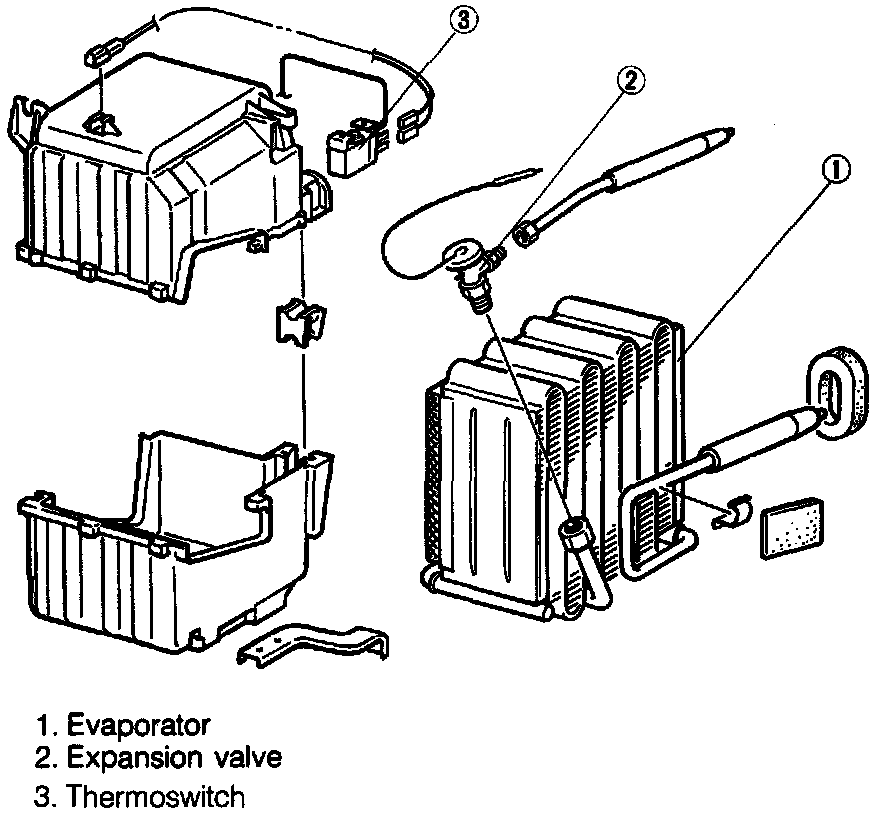

Thermoswitch Removal




1. Remove the cooling unit. See Evaporator Case.
Evaporator Case
2. Disassemble the cooling unit, and remove the thermoswitch.


Inspection







1. Immerse the sensing bulb in a container of ice water.

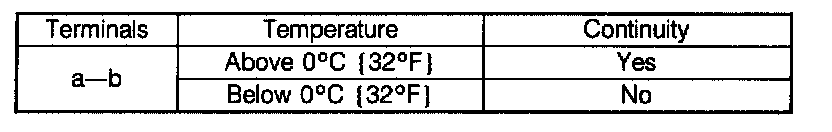

2. Check continuity between terminals of the switch as specified.
3. If not as specified, replace the thermoswitch.


Installation
- Install in the reverse order of the removal.
