A/T Revolution Sensor - HOLD Lamp Flashes/DTC 06 Set

Bulletin No.: 002/96
Issued: 06/12/96
Revised: 9/20/96

Category
K

Applicable Model/s
1994 - 95 MVP

Subject:
HOLD INDICATOR LIGHT FLASHES / CODE 06

APPLICABLE MODELS
1994 - 95 MPV with a VIN of JM3LV52**R0605769 through JM3LV52**S0799999

DESCRIPTION





The "HOLD" indicator light may flash and Diagnostic Trouble Code (DTC) 06 may be retrieved on vehicles with resin molded type output speed sensors (revolution sensor). This concern is caused by cracks due to thermal expansion. To prevent thermal cracks, the sensor cover is now stainless steel.

Customers complaining of this concern, should have the vehicle inspected and if necessary, the speed sensor replaced with a modified part.

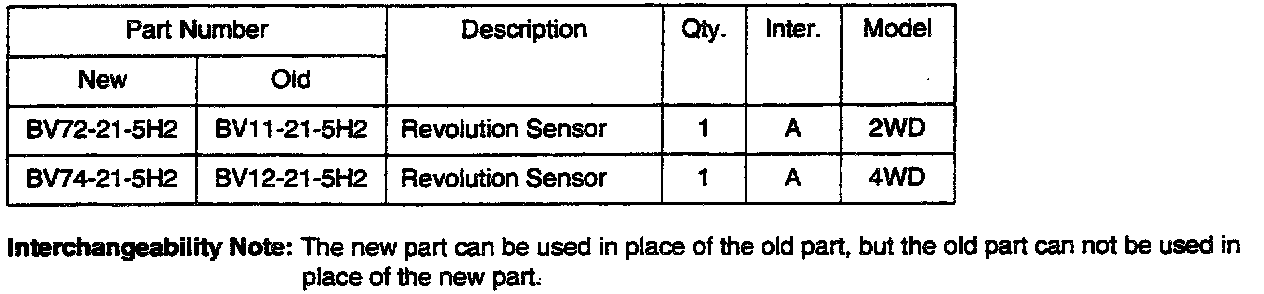

PARTS INFORMATION

WARRANTY INFORMATION

(Applies To Verified Customer Complaints On Vehicles Currently Under Warranty. Refer To The SRT Microfiche For Warranty Terms).

Warranty Type: A

Symptom Code: 62

Damage Code: 9R

Part Number Main Cause: BV72-21-5H2 or BV74-21-5H2

Operation Number: K0411XRX

Labor Hours: 0.3Hrs.
