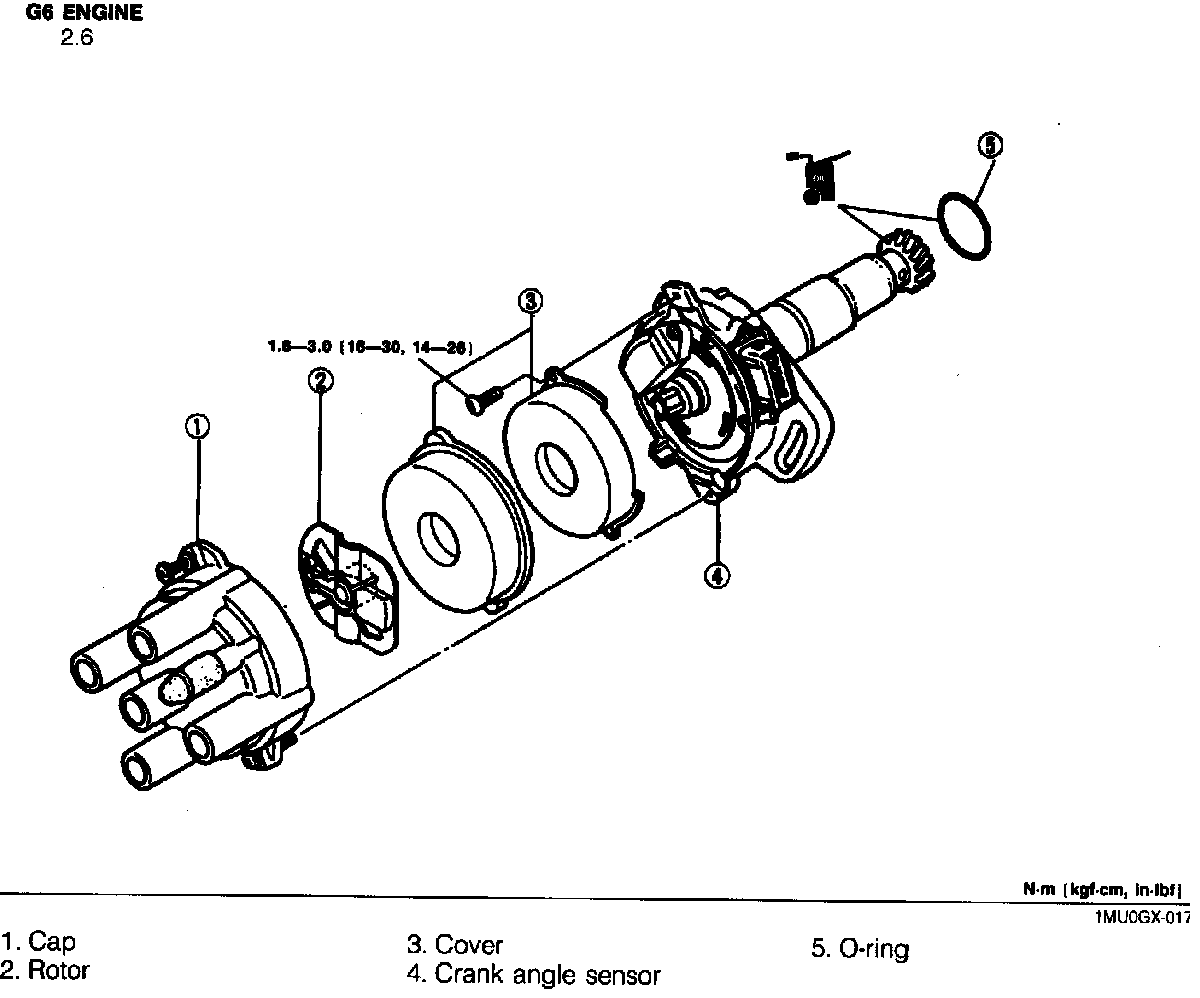

Distributor: Testing and Inspection

INSPECTION

1. Remove the distributor.
2. Connect the distributor connector.
3. Disconnect the injector connector.
4. Turn the ignition switch ON.

5. Connect the SSTs (engine signal monitor and adapter harness) to the ECU as shown.
6. Set the SST (engine signal monitor).

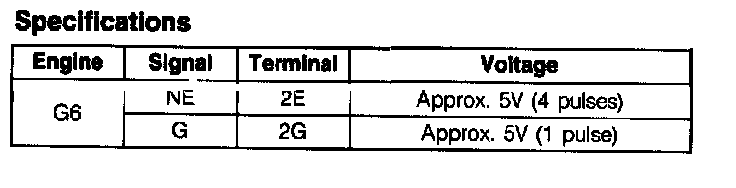

7. Rotate the distributor drive by hand and measure the output voltage.
