Mazda
>>
1994
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
H-2
>>
Terminals 2A-2T
Terminals 2A-2T

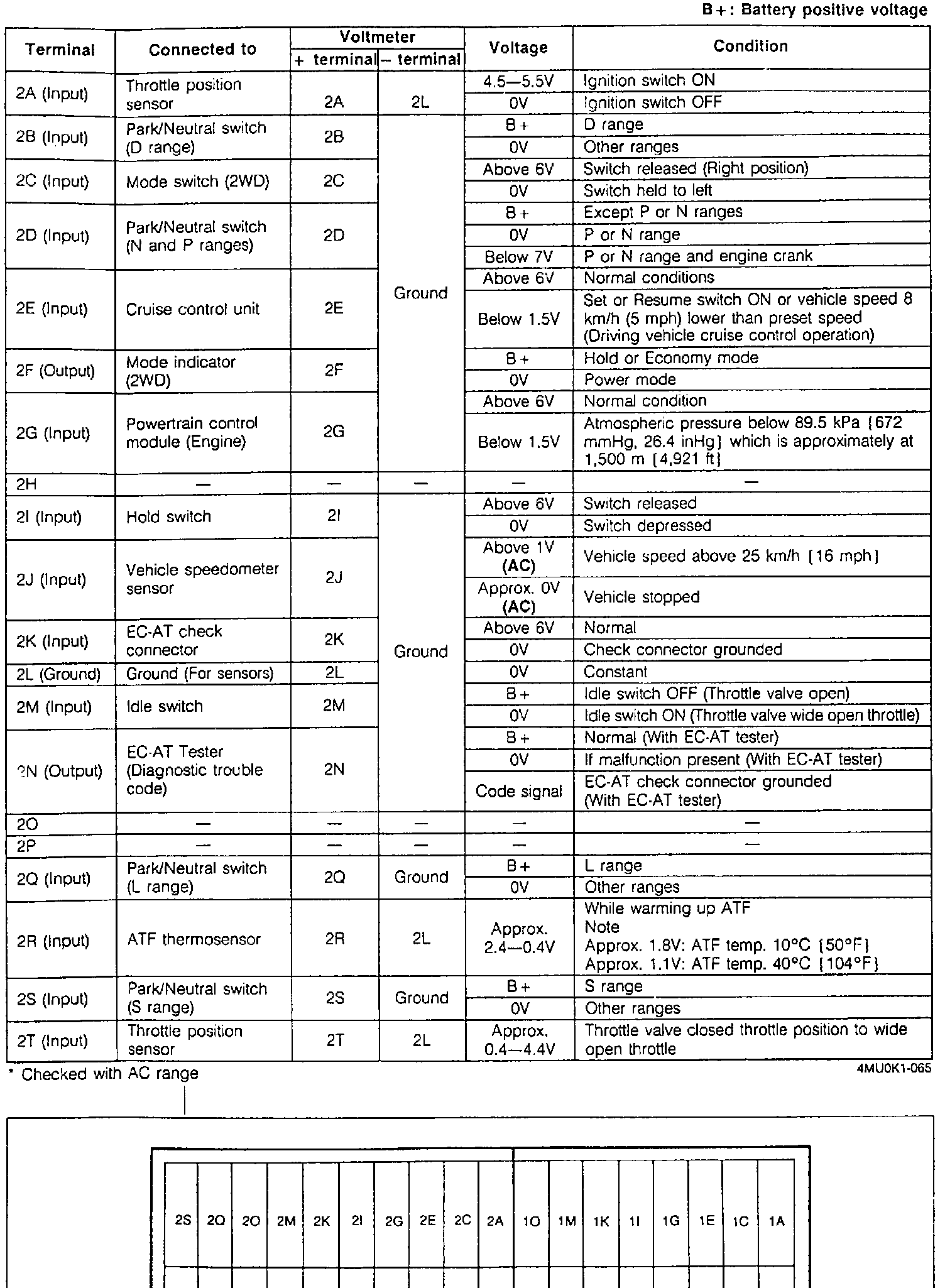

��QTerminal Voltage Chart:
