Torque Specifications

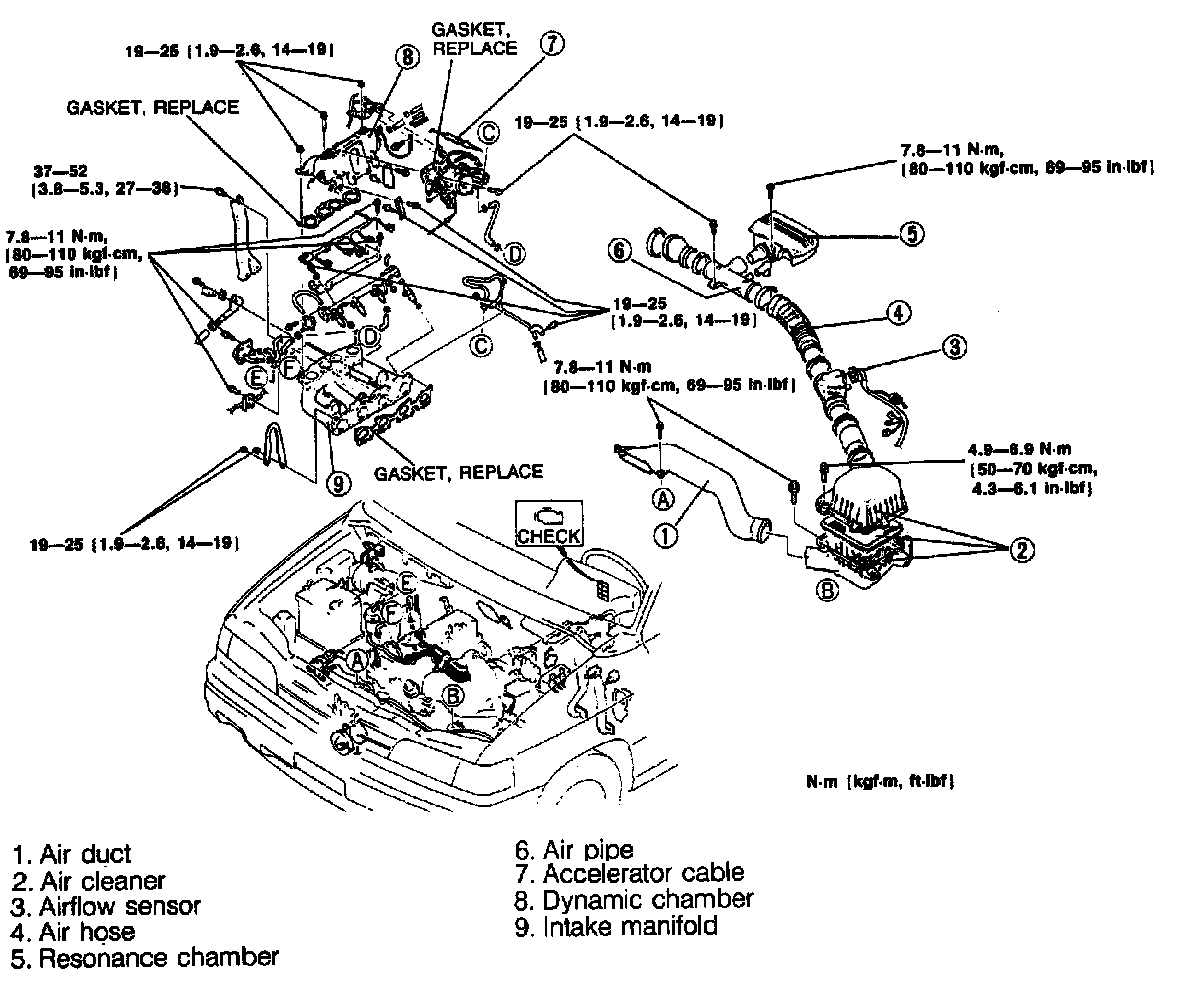

Intake:

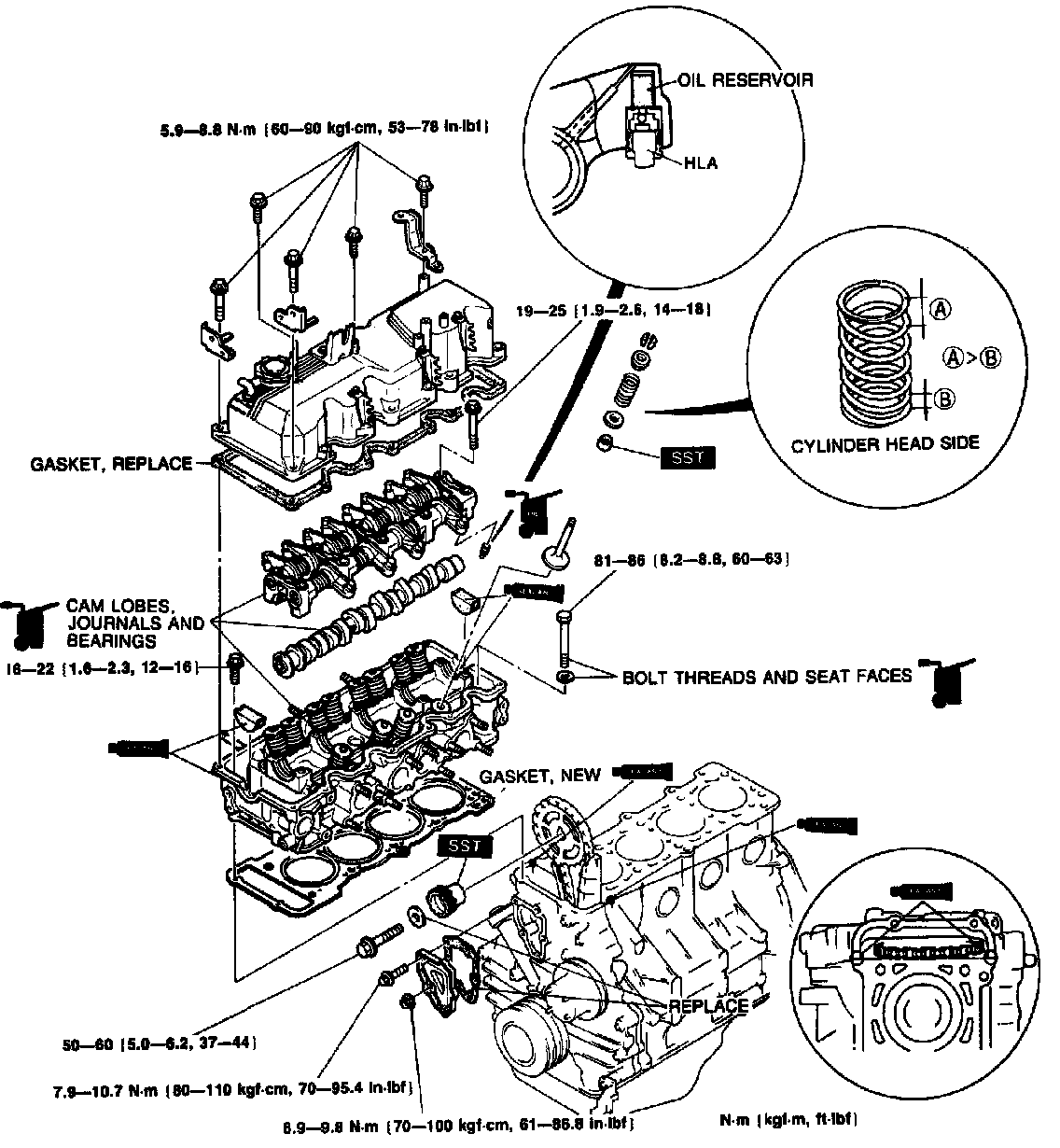

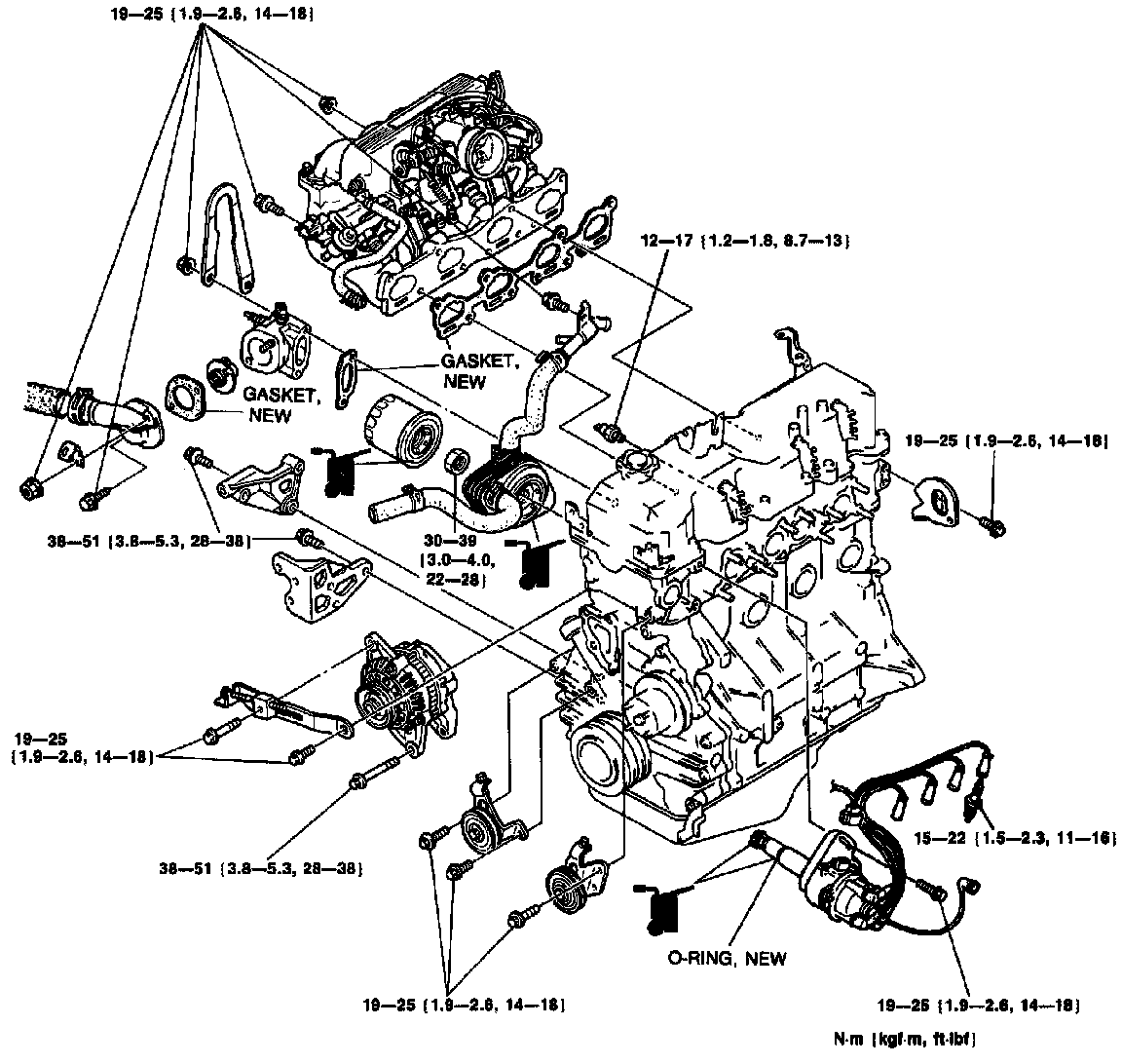

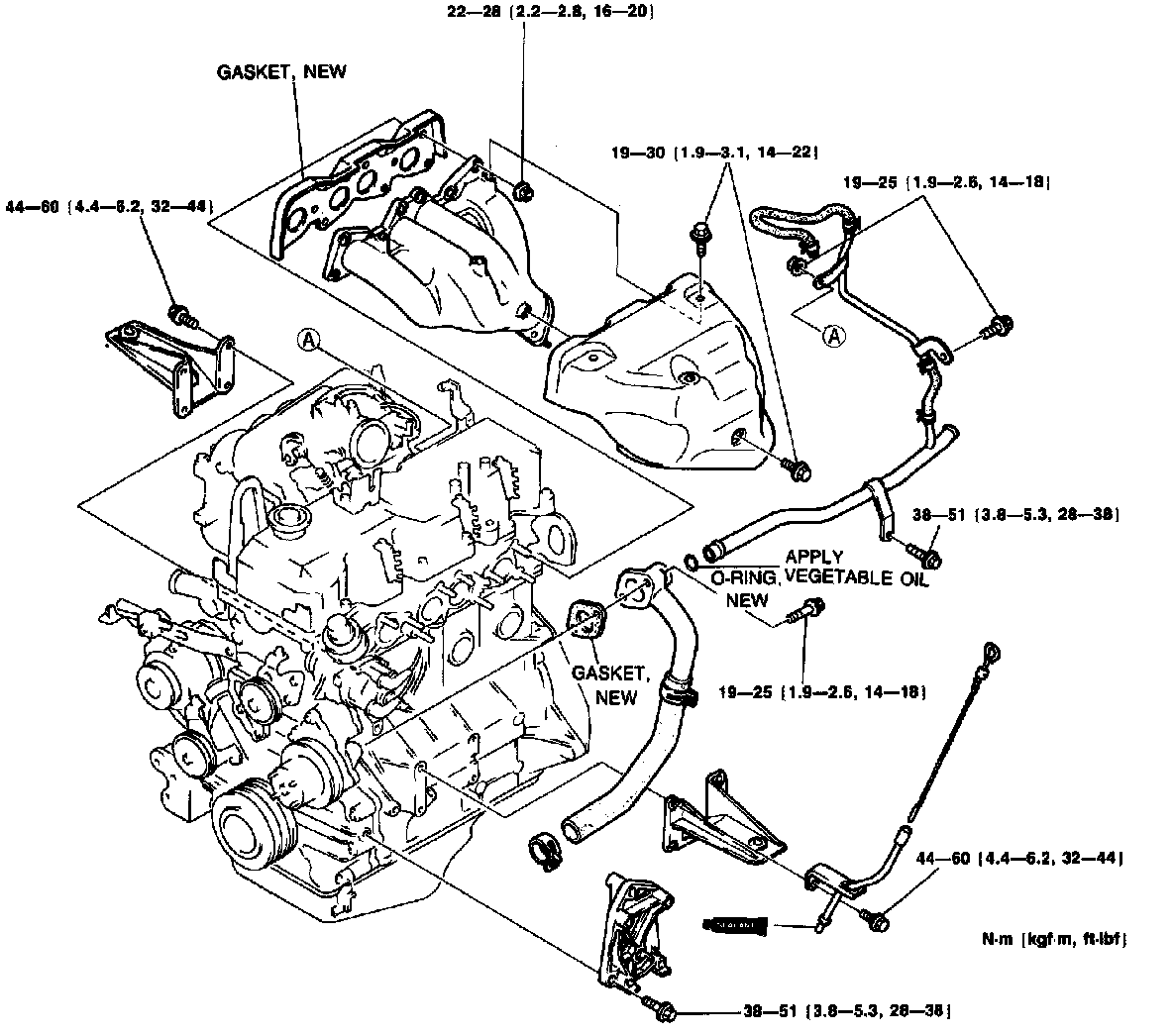

Upper Engine:

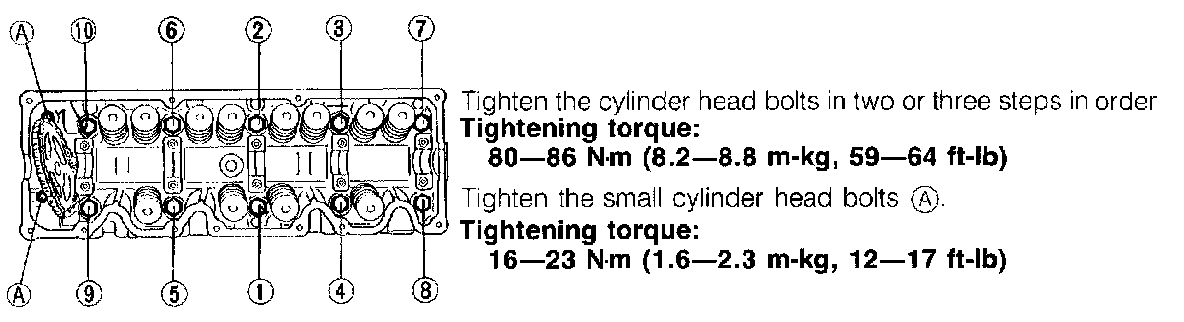

Head Bolt Torque/Sequence:











Timing Components:

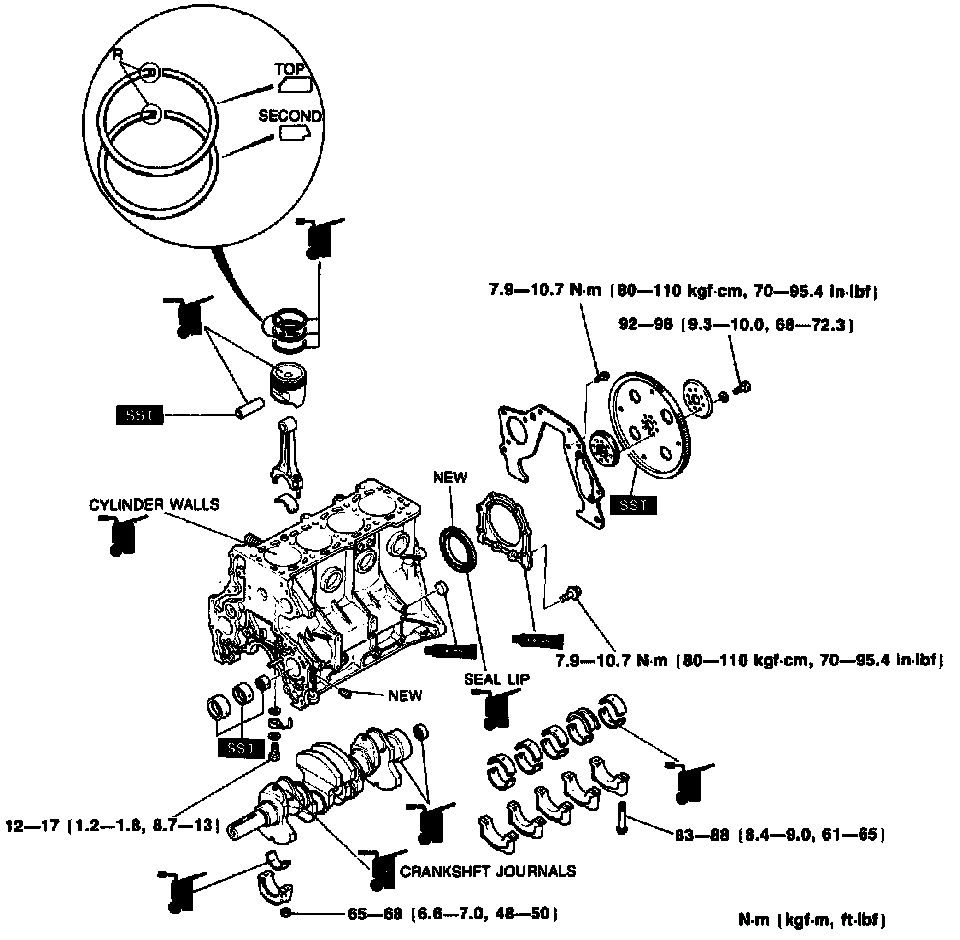

Lower Engine:

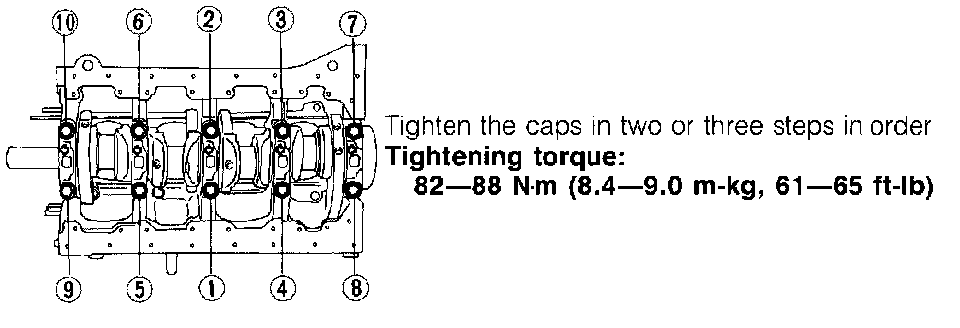

Main Bolt Torque/Sequence:
