Home >> Mazda >> 1994 >> MPV L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Front Wipers

Front Wipers

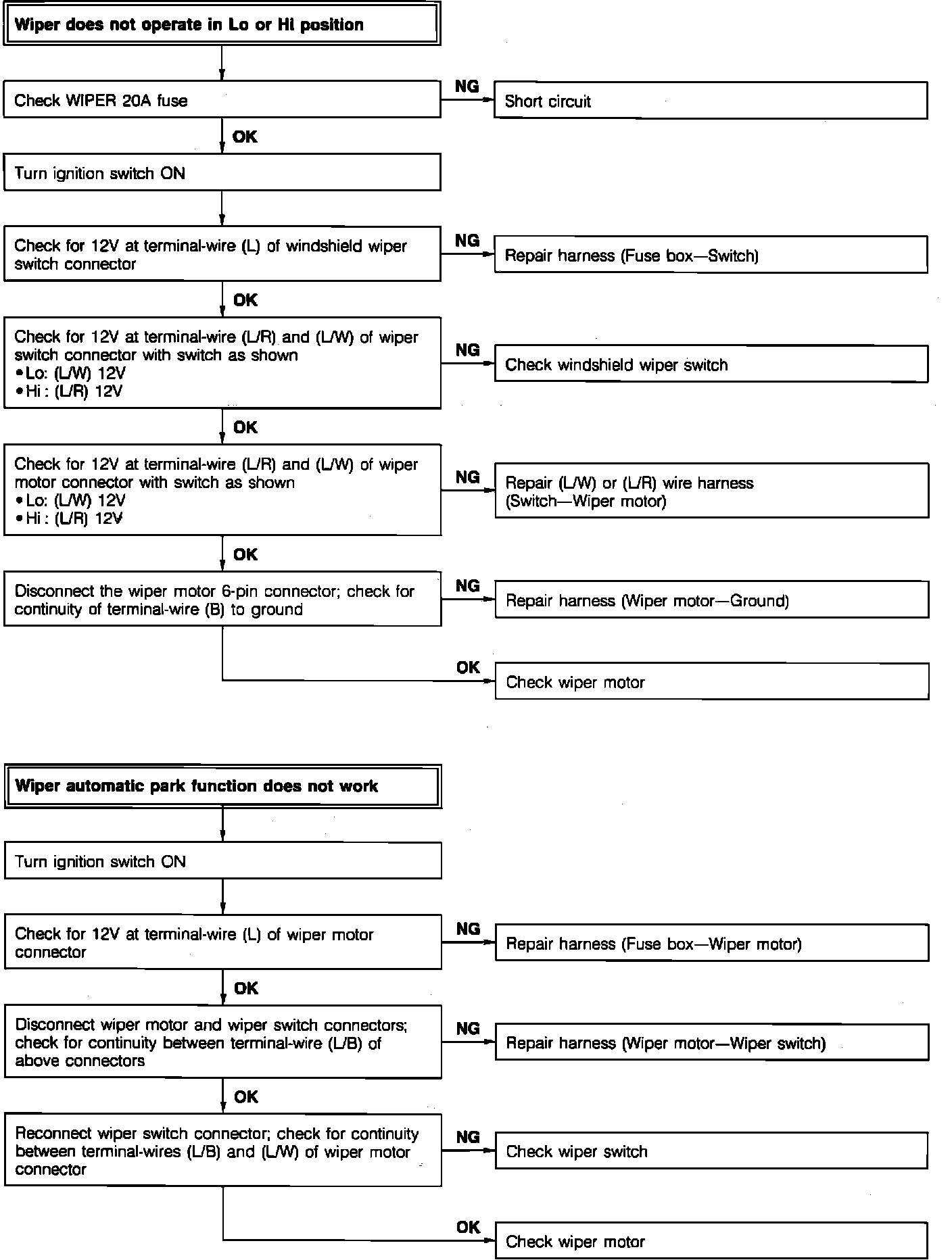

Fig. 21 Troubleshooting Chart (Part 1 Of 2):

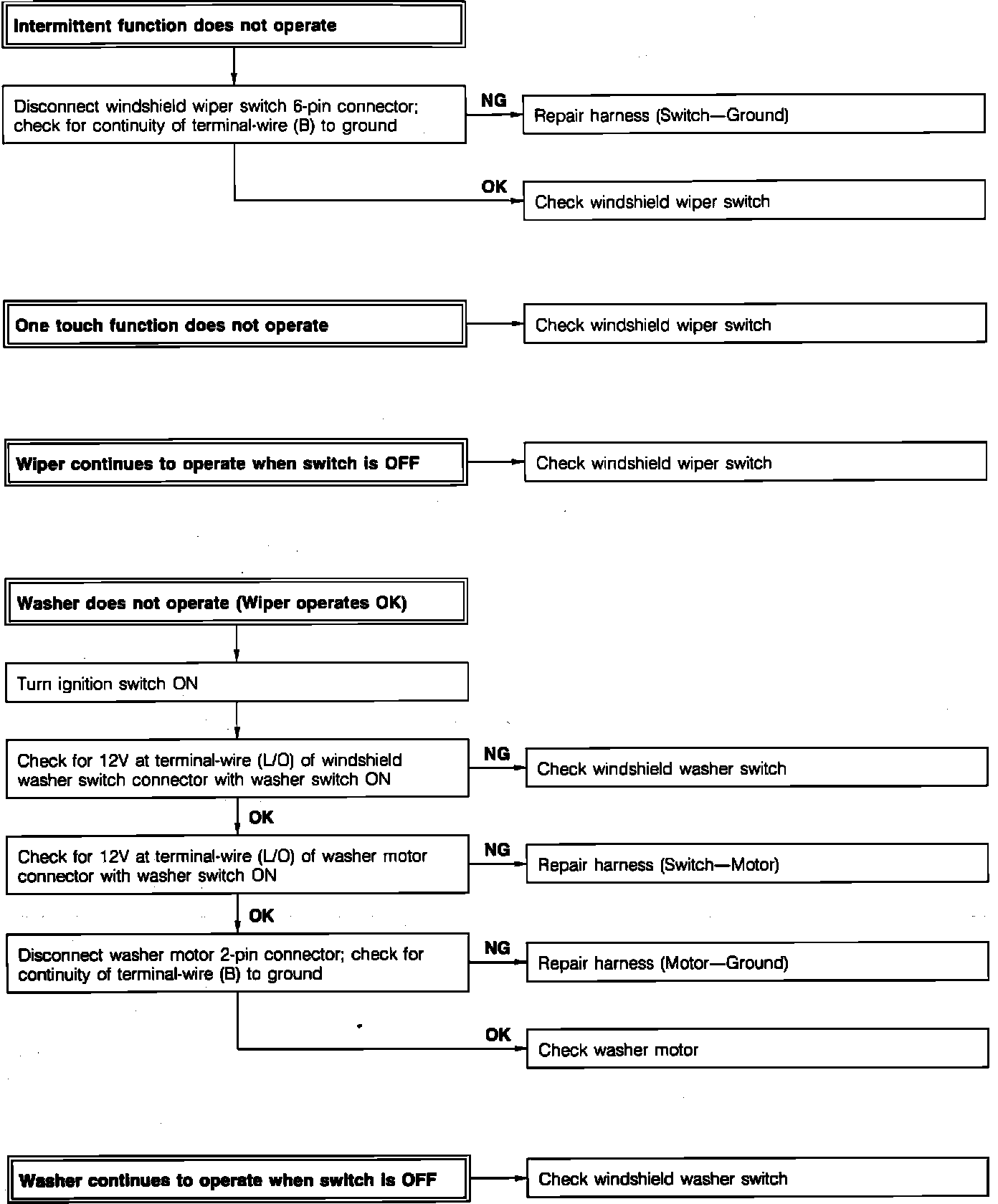

Fig. 21 Troubleshooting Chart (Part 2 Of 2):
