Home >> Mazda >> 1994 >> MX-3 V6-1844cc 1.8L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Terminal 1A Through 1L >> Part 2 of 2

Part 2 of 2

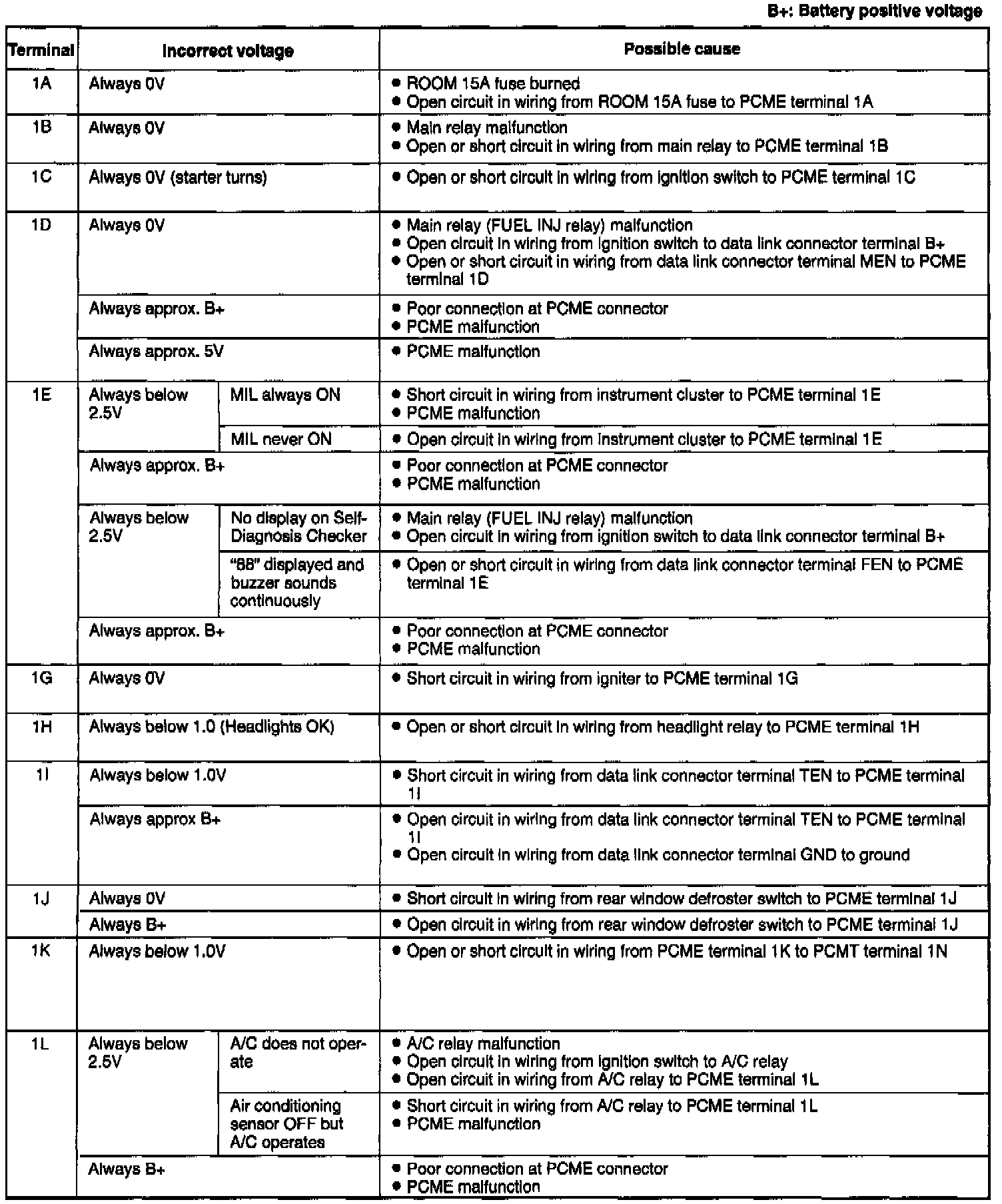

1A - 1L (Part 2 Of 2):
