Home >> Mazda >> 1994 >> MX-3 V6-1844cc 1.8L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Terminal 2H Through 3N >> Part 1 of 2

Part 1 of 2

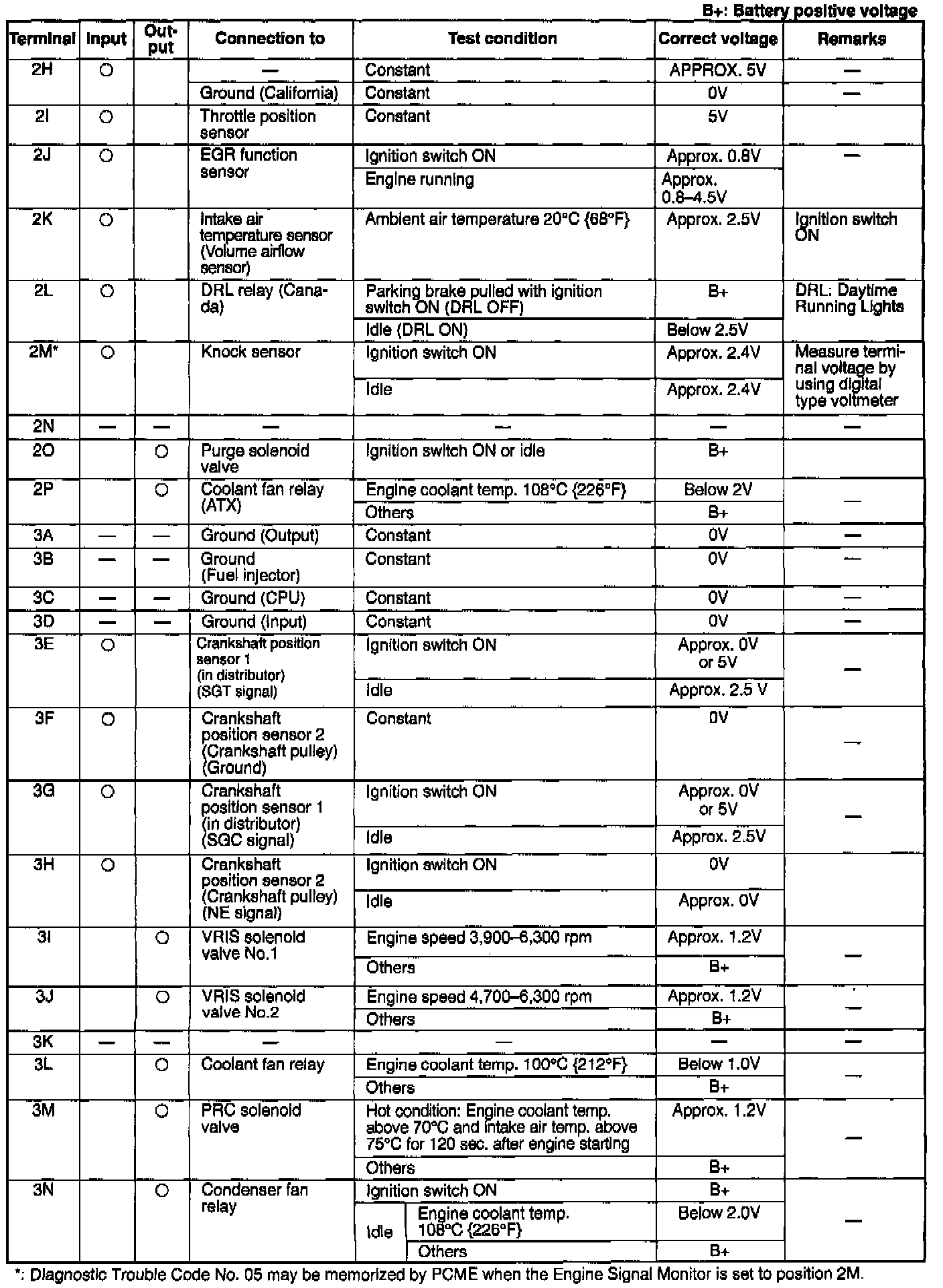

2H - 3N (Part 1 Of 2):
