Front Cross-Member: Service and Repair

1. Raise and support vehicle.
2. Remove wheel and tire.
3. Support engine with suitable engine hoist.
4. Remove components in numerical sequence shown in Fig. 11.

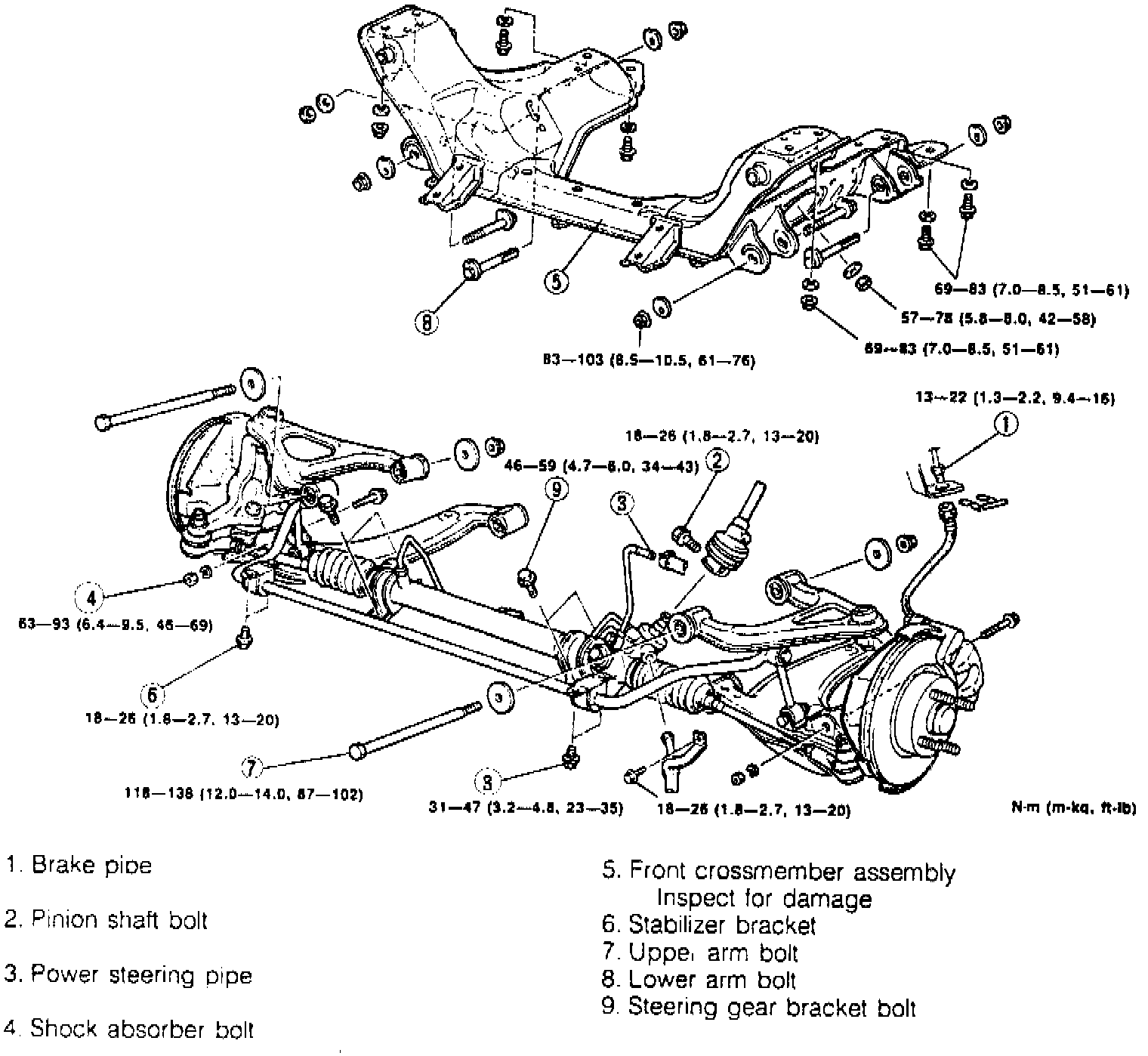

Fig. 11 Crossmember & Related Components:

5. Reverse procedure to install, noting the following:
a. Lower crossmember and other suspension parts as an assembly, then separate parts.
b. Upon installation, loosely tighten stabilizer bracket, upper arm and lower arm bolts, then lower vehicle and tighten fasteners to specifications.
c. Bleed air from brake and power steering systems.
