Compressor Clutch Relay: Testing and Inspection
1.
Check continuity between terminals as shown,
Fig. 3 and 4.

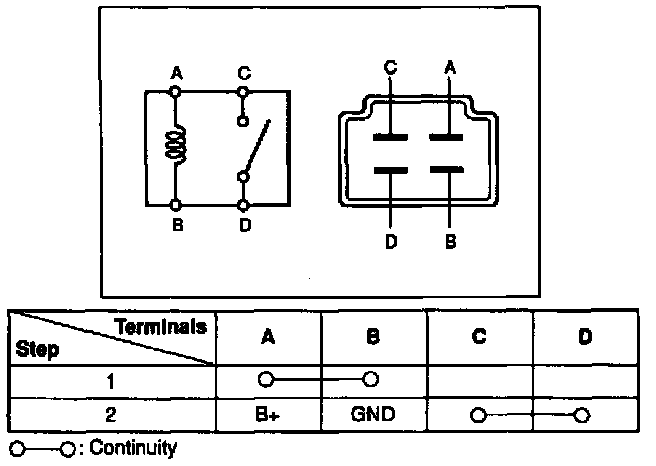

Fig. 3 A/C Relay Test:

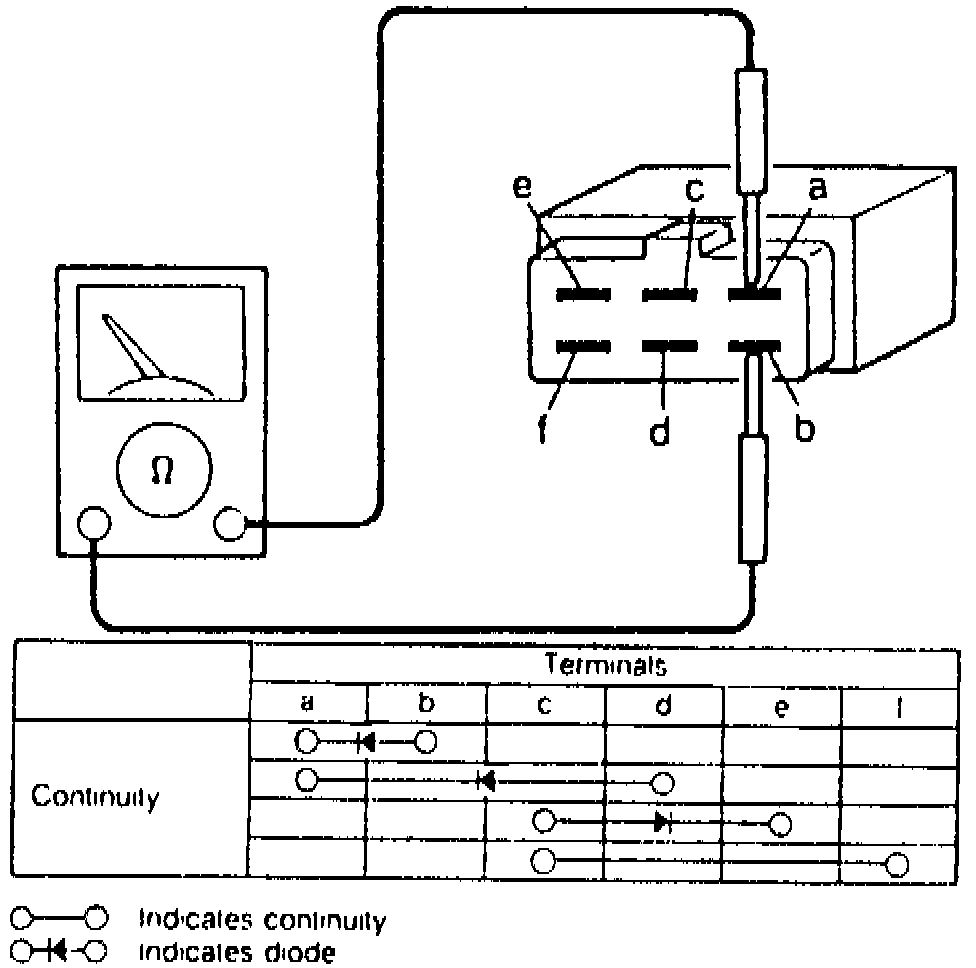

Fig. 4 A/C Relay Test:
2.
If not as specified, replace
relay. If correct, go to next step.
3.
Apply voltage battery to terminal D and ground terminal A. Continuity should now exist between terminals C and E. If not, replace
relay.
