Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
Intake Air Temperature Sensor Testing:
1.
Verify that
ignition switch is OFF.
2.

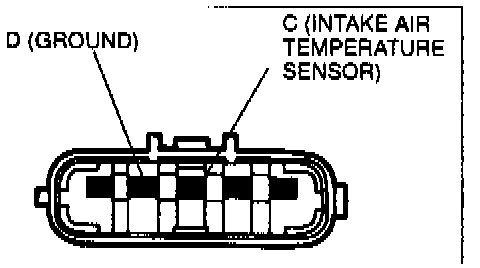

Unplug connector and measure resistance as shown. It should be
2.21 - 2.69K ohms @ 68°F (20°C). 3.
If not as specified, replace airflow sensor as a unit.
