Electrical Diagrams

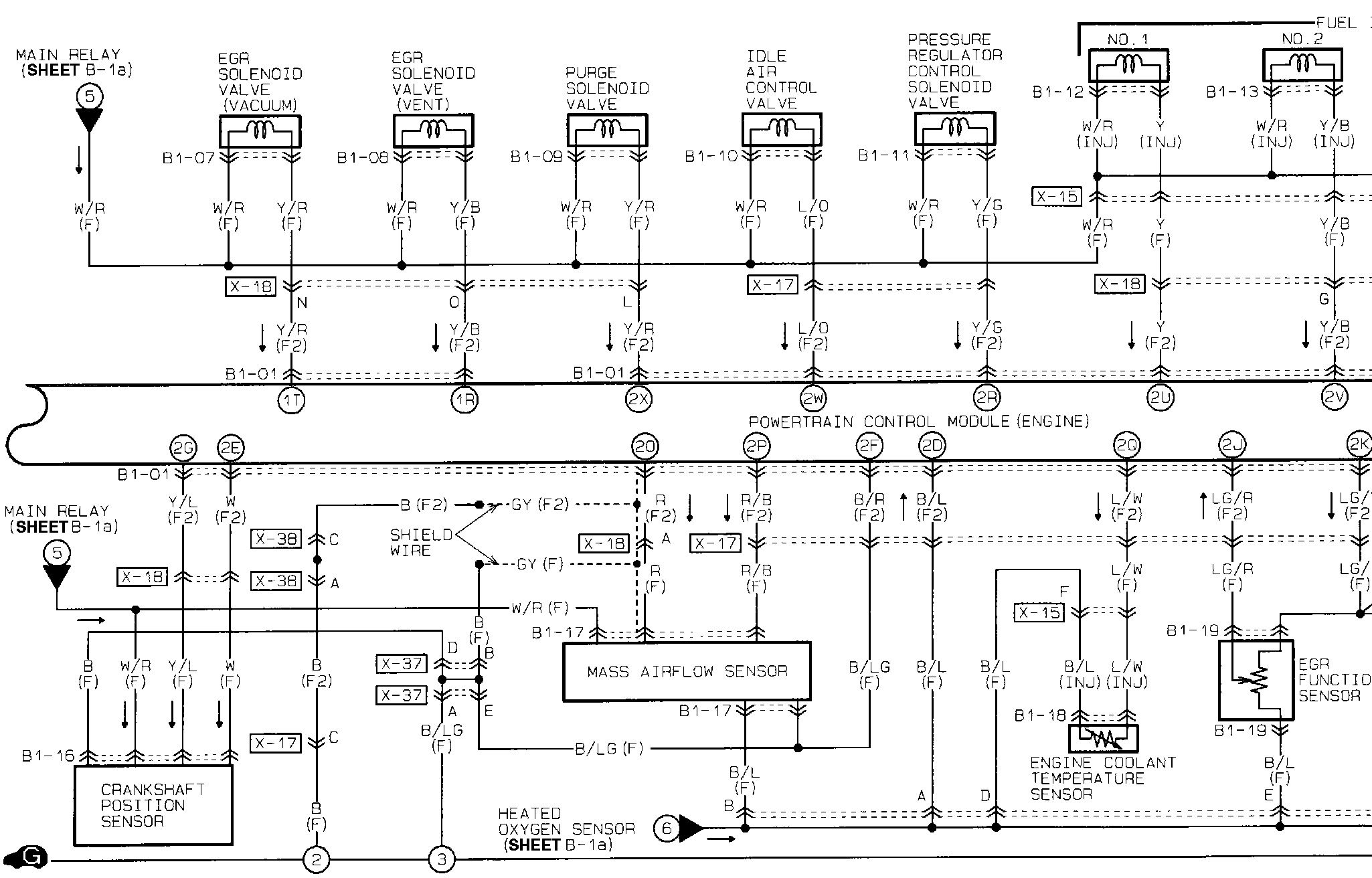

ENGINE CONTROL SYSTEM, PART 1

۠M>B-1B: Engine Control System B-1B:






B1-01 Powertrain Control Module (Engine) (F2):





B1-07 EGR Solenoid Valve (vacuum) (F):





B1-08 EGR Solenoid Valve (vent) (F):





B1-09 Purge Solenoid Valve (F):





B1-10 Idle Control Valve (F):





B1-11 Pressure Regulator Control Solenoid Valve (F):





B1-12 Fuel Injector NO. 1 (INJ):





B1-13 Fuel Injector NO. 2 (INJ):





B1-14 Fuel Injector NO. 3 (INJ):





B1-15 Fuel Injector NO. 4 (INJ):





B1-16 Crankshaft Position Sensor (F):





B1-17 Mass Airflow Sensor (F):





B1-18 Engine Coolant Temperature Sensor (INJ):





B1-19 EGR Function Sensor (F):





B1-20 Throttle Position Sensor (F):

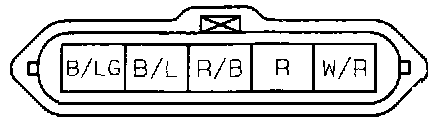

\8Connector Locations:

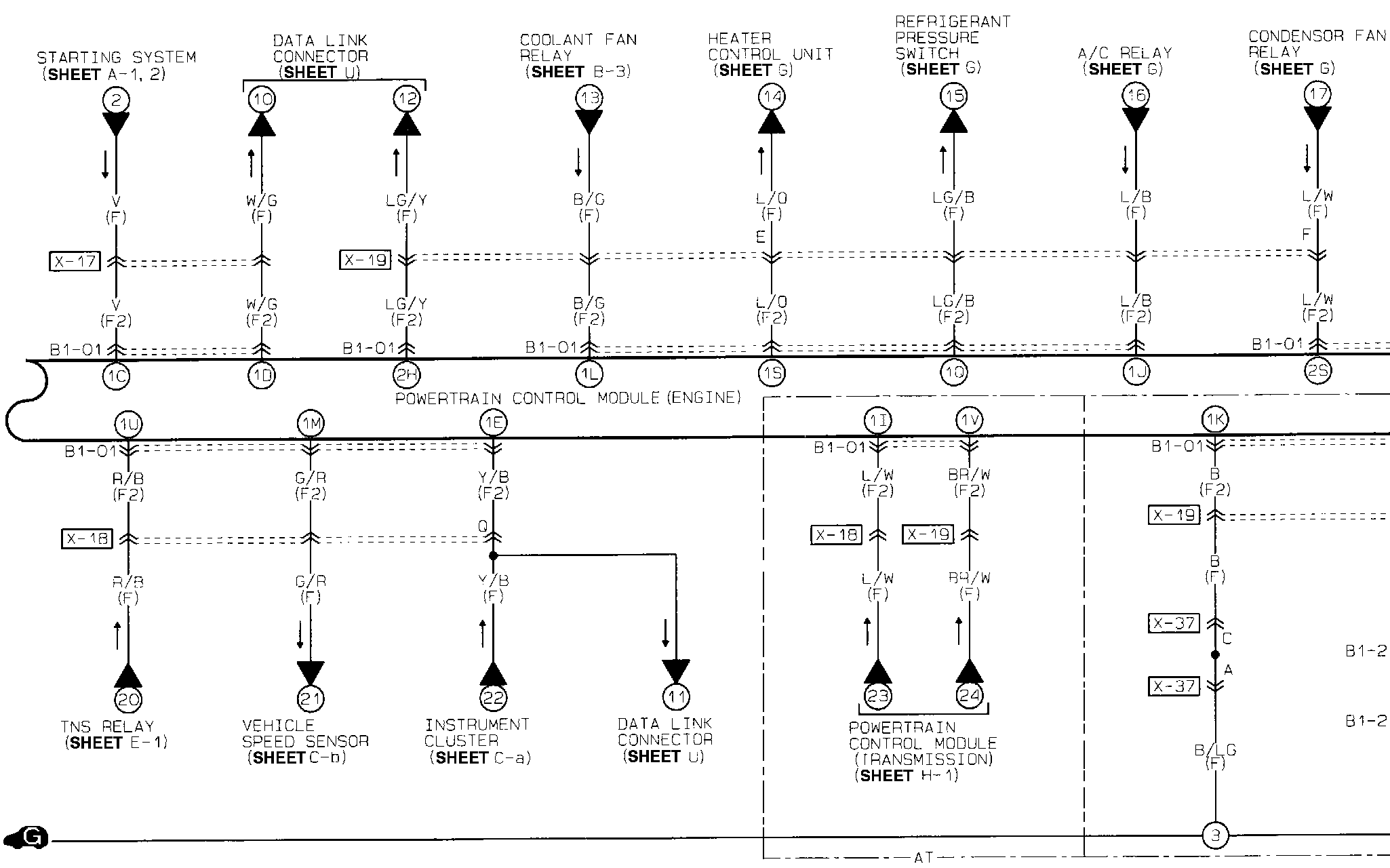

ENGINE CONTROL SYSTEM, PART 2

�N>Engine Control System B-1C:






B1-01 Powertrain Control Module (Engine) (F2):





B1-21 Clutch Switch (F):

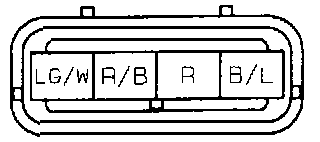

�jConnector Locations:
