Ignition Control Module: Locations

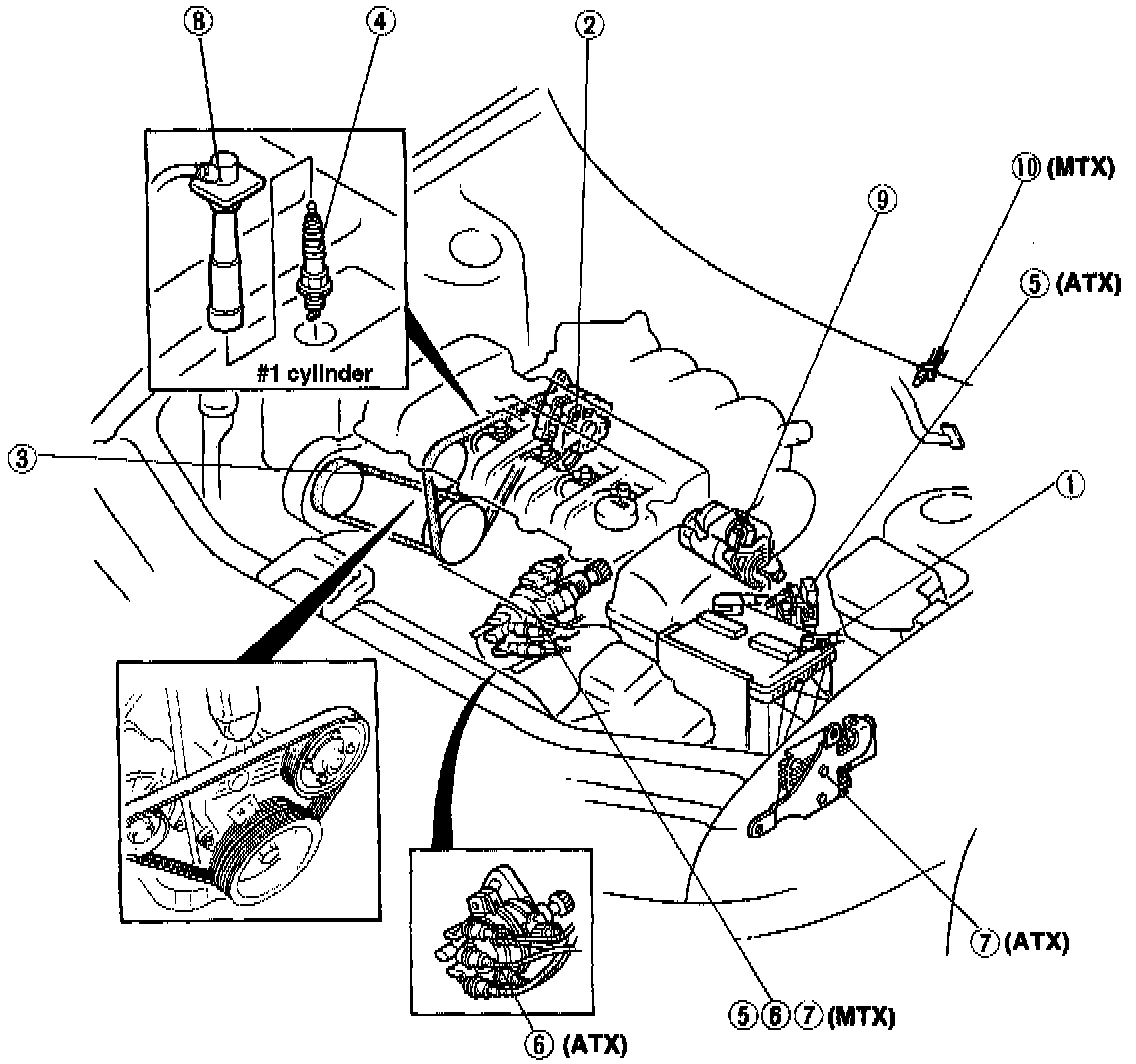

Engine Electrical Components:
1.
Battery
2.
Alternator
3.
Drive belt
4.
Spark plugs
5.
Ignition coil
6.
Distributor
7.
Igniter (MTX), Ignition Control Module (ATX)
8.
High tension lead
9.
Starter
10.
Starter interlock switch (MTX)
