With Automatic Transaxle (ATX)

ICM R&R:






1. Remove in order shown.
2. Install in reverse order.

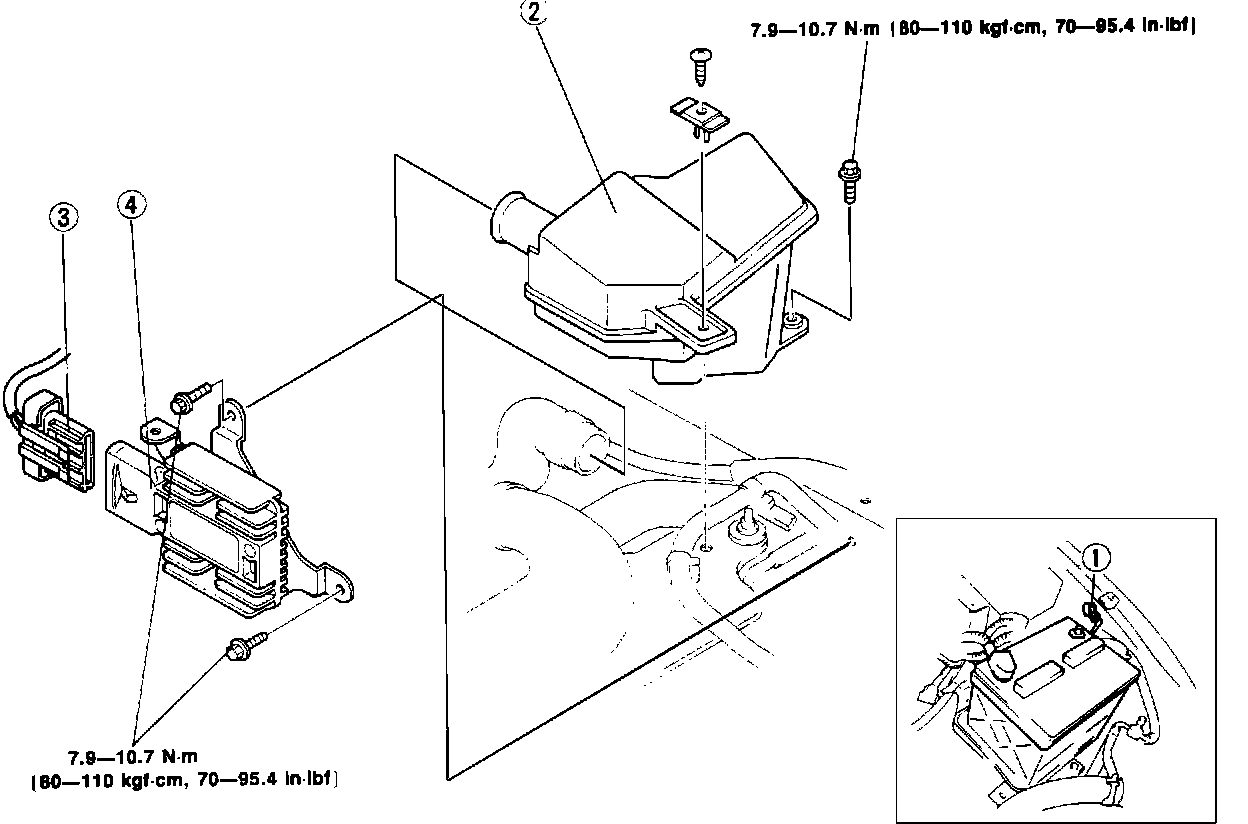

COMPONENTS

1. Negative Battery cable.
2. Resonance Chamber.
3. ICM Connector.
4. ICM.
