Power Steering Pressure Switch: Testing and Inspection

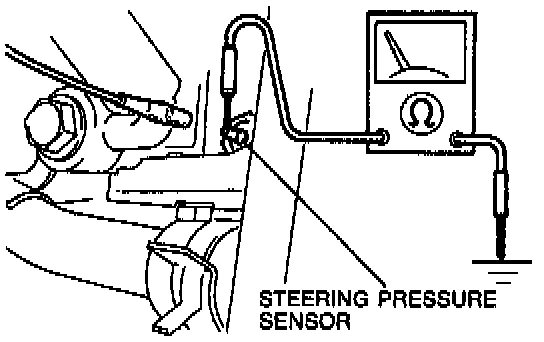

Steering Pressure Sensor:
1.
Disconnect sensor connector.
2.
Start engine and check switch continuity. While turning the steering wheel, sensor should show continuity. With steering wheel straight ahead (not being turned), there should be no continuity.
3.
If not as specified, replace sensor.
