Engine Control Module

POWERTRAIN CONTROL MODULE TERMINAL (UNIT SIDE)

NOTE: Reference values may vary 20% depending on operating conditions. RPM values are axle ratio and tire size dependant.

NOTE: Reference Values May Vary 20% Depending On Operating Conditions. RPM Values Are Axle Ratio And Tire Size Dependant:

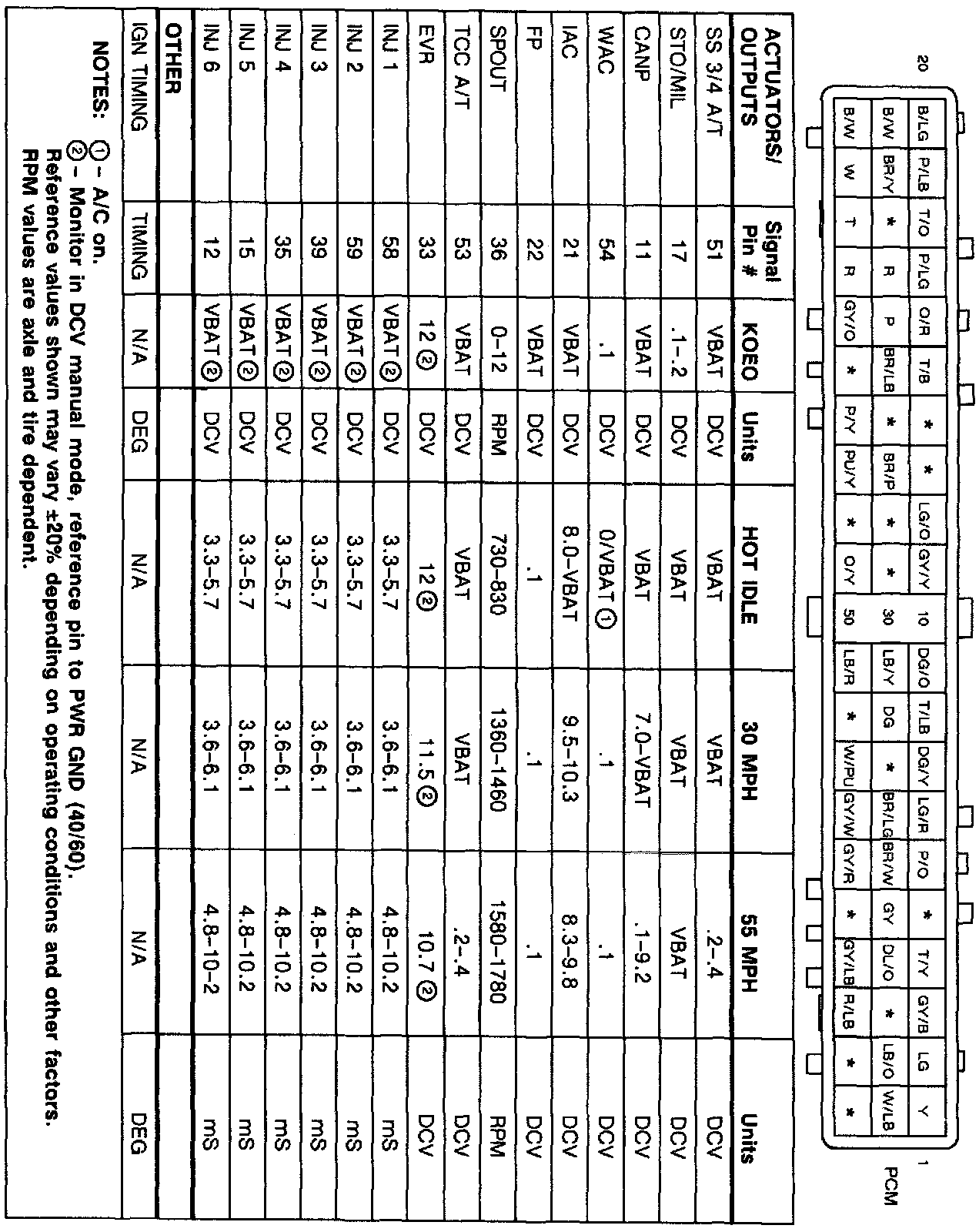

Output Actuator Terminals
Pin No.51 Shift Solenoid (SS)
Pin No.17 Self Test Output/Malfunction Indicator Lamp (STO/MIL)
Pin No.11 Evaporative Canister Purge (CANP)
Pin No.54 Wide Open Throttle A/C Cutout Relay (WAC)
Pin No.21 Idle Air Control Solenoid (IAC)
Pin No.22 Fuel Pump Relay (FP)
Pin No.36 Spark Output Signal (from Ignition Control Module) (SPOUT)
Pin No.53 Torque Converter Clutch Solenoid (Lockup) (TCC)
Pin No.33 EGR Vacuum Regulator Solenoid (EVR)
Pin No.12 Fuel Injector (INJ 6)
Pin No.15 Fuel Injector (INJ 5)
Pin No.35 Fuel Injector (INJ 4)
Pin No.39 Fuel Injector (INJ 3)
Pin No.58 Fuel Injector (INJ 1)
Pin No.59 Fuel Injector (INJ 2)

NOTE: Reference Values May Vary 20% Depending On Operating Conditions. RPM Values Are Axle Ratio And Tire Size Dependant:

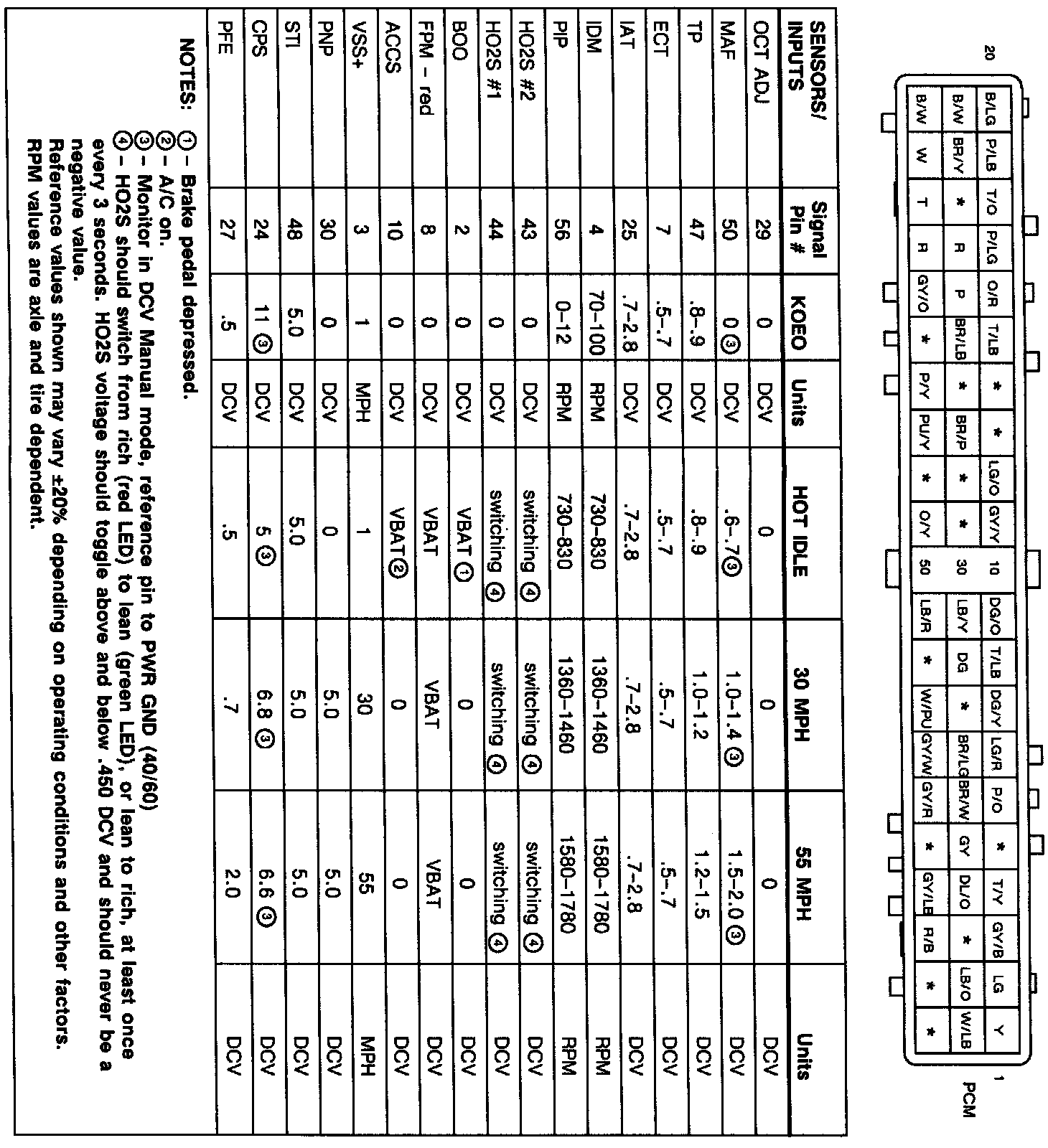

Sensor Input Terminals
Pin No.29 Octane Adjust Shorting Bar (OCT ADJ)
Pin No.50 Mass Air Flow Sensor (MAF)
Pin No.47 Throttle Position Sensor (TP)
Pin No.7 Engine Coolant Temperature Sensor (ECT)
Pin No.25 Intake Air Temperature Sensor (IAT)
Pin No.4 Ignition Diagnostic Monitor (IDM) (from Ignition Control Module)
Pin No.56 Camshaft Position Signal (PIP) (from Ignition Control Module)
Pin No.43 Heated Oxygen Sensor (H02S #2)
Pin No.44 Heated Oxygen Sensor (H02S #1)
Pin No.2 Stop Light Switch Signal - Brake ON/OFF Signal (BOO)
Pin No.8 Fuel Pump Monitor (FPM) (from Fuel Pump Relay)
Pin No.10 A/C Compressor ON/OFF Signal (ACCS) (from A/C pressure switch)
Pin No.3 Vehicle Speed Sensor (VSS)
Pin No.30 Park/Neutral Position Switch A/T or Park/Neutral Position Switch and/or Clutch Pedal Position Switch M/T (PNP)
Pin No.48 Self Test Input (STI) (from Data Link Connector)
Pin No.24 Camshaft Position Sensor (CPS)
Pin No.27 Differential Pressure Feedback EGR Sensor (PFE)
