Home >> Mazda >> 1994 >> Navajo 2WD V6-4.0L OHV >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Exterior Lighting Module

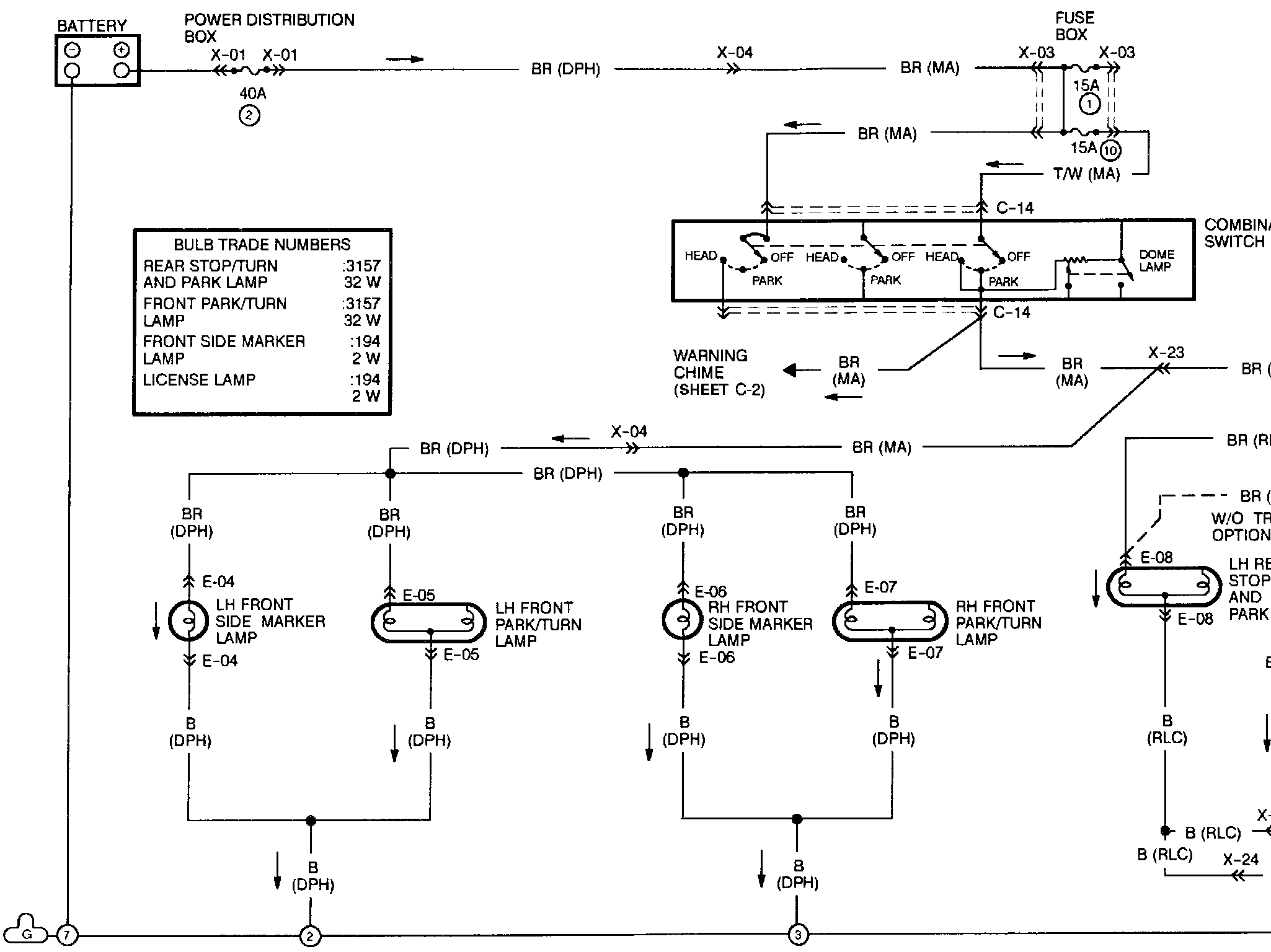

Exterior Lighting Module

}C�Exterior Lamps:
