Home >> Mazda >> 1994 >> Navajo 2WD V6-4.0L OHV >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Interior Lighting Module

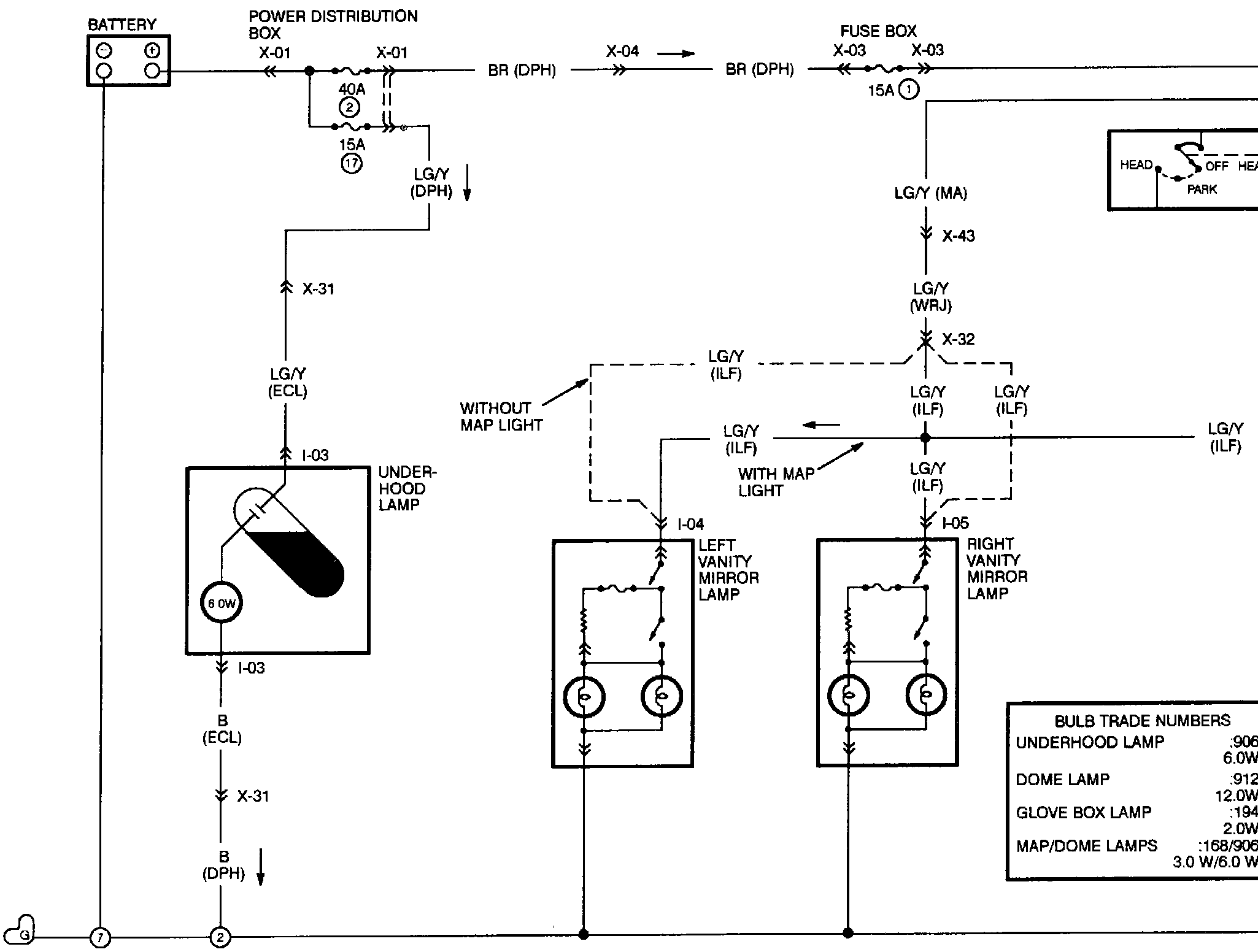

Interior Lighting Module

Y�Interior Lamps And Underhood Lamp:
