Home >> Mazda >> 1994 >> Navajo 2WD V6-4.0L OHV >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock Control Module

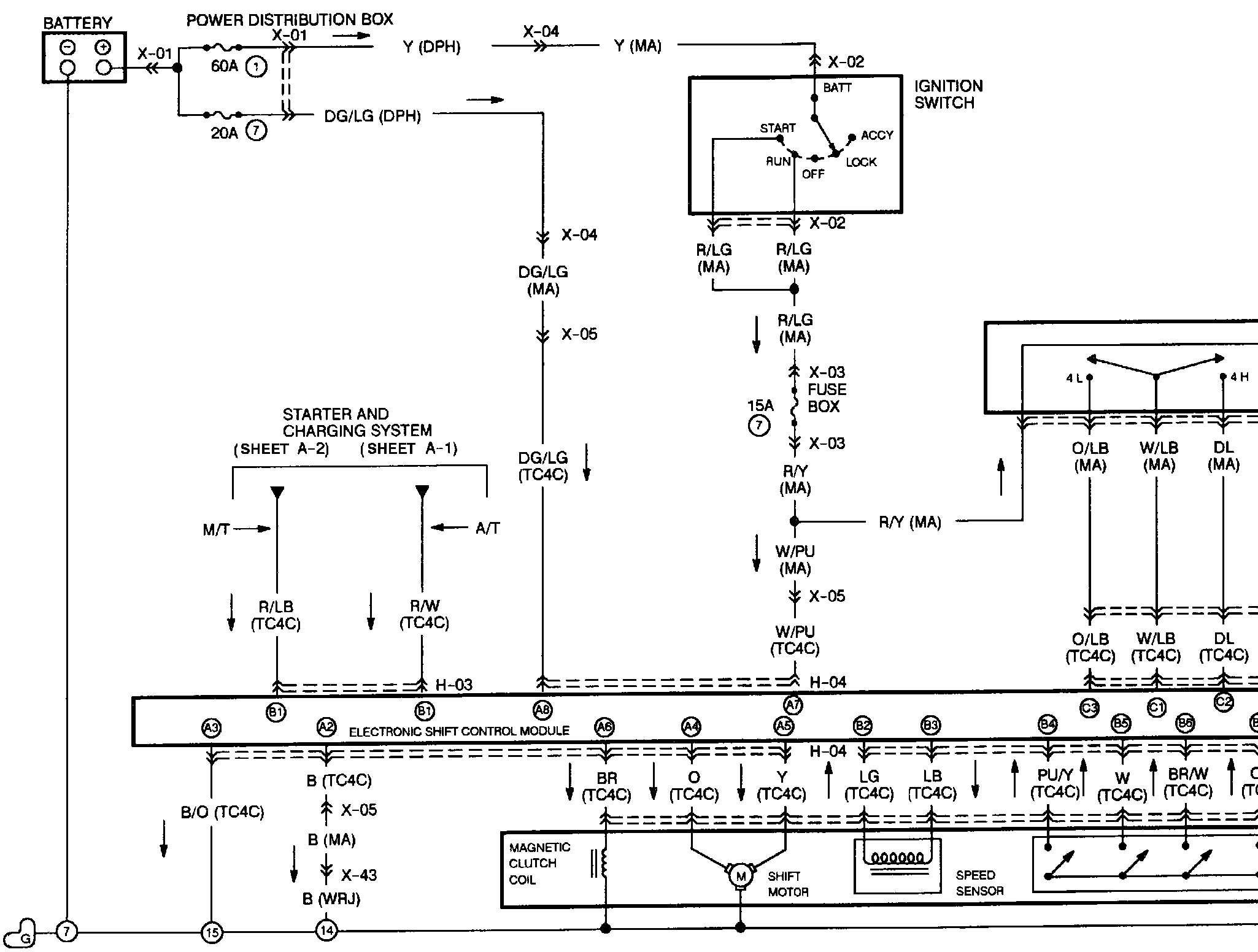

Shift Interlock Control Module

w1!Electronic Shift Control:
