Fuel Filter: Locations

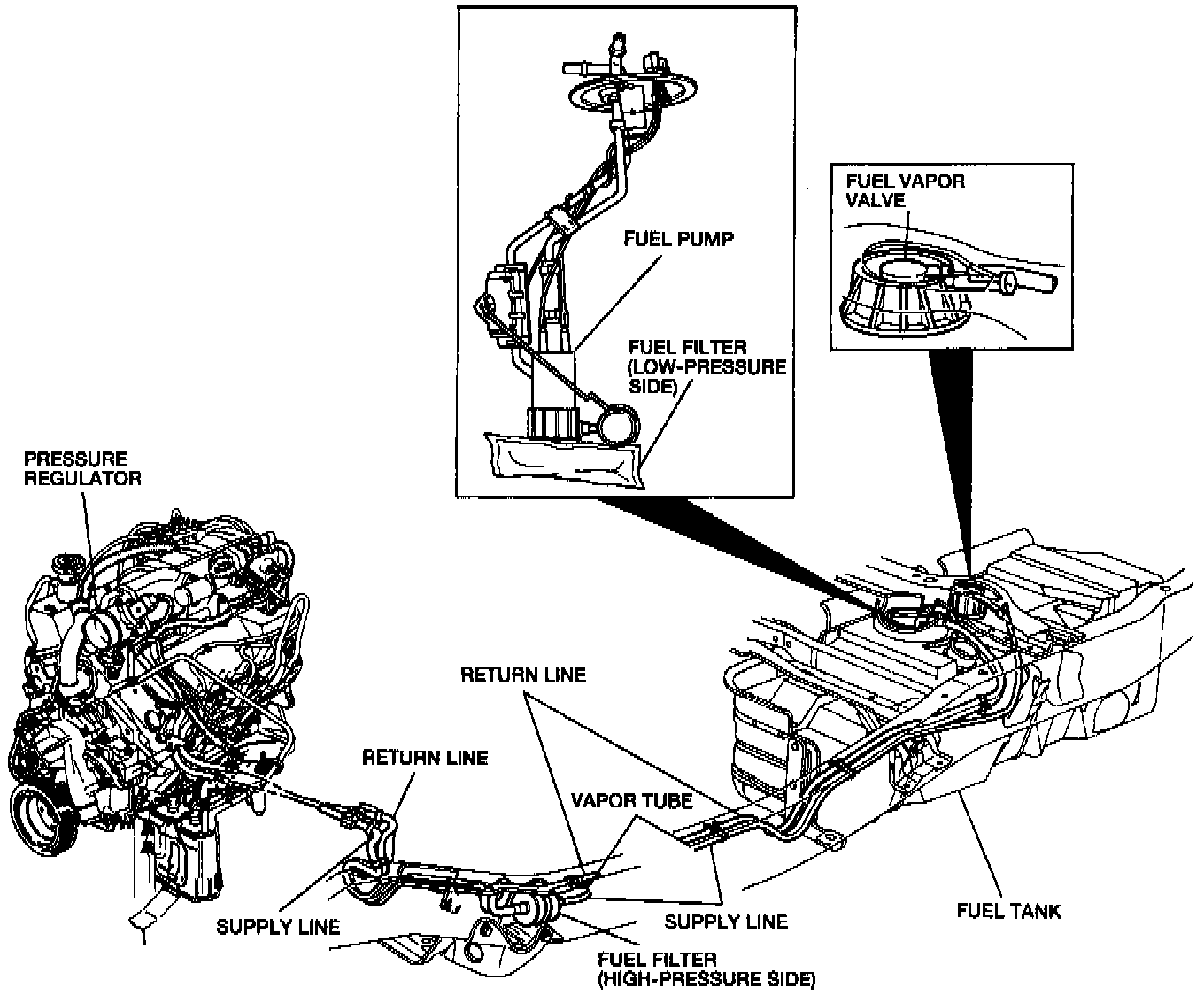

View: Fuel System:

IN-LINE FILTER (HIGH PRESSURE SIDE)
Located on the Underside of the vehicle, mounted in the left side chassis frame rail.

FUEL PUMP INLET FILTER/SCREEN (LOW PRESSURE SIDE)
Located in the fuel tank mounted on the fuel pump inlet.
